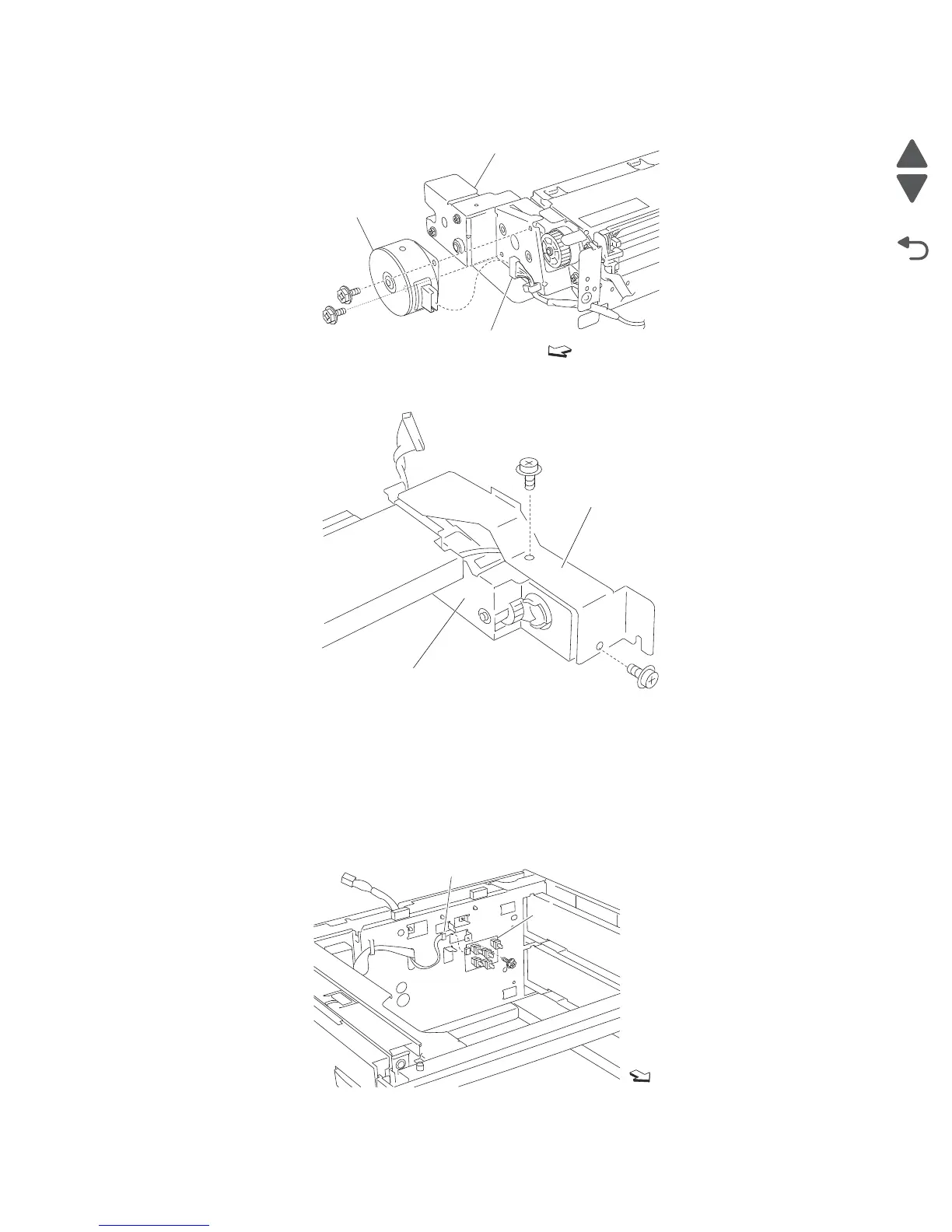

5. Remove the media feed lift motor (B).
Switch (media size) removal
Note: This procedure can be applied to tray 1 or tray 2 switch (media size).
1. Remove media Tray 1 and media Tray 2.
2. Remove one screw securing the switch (media size) (A) to the bracket inside the machine.
3. Remove the connector from switch (media size) (A).
4. Remove the switch (media size) (A).
A
B
Connector
Rear
B
C
A
Connector
Front
