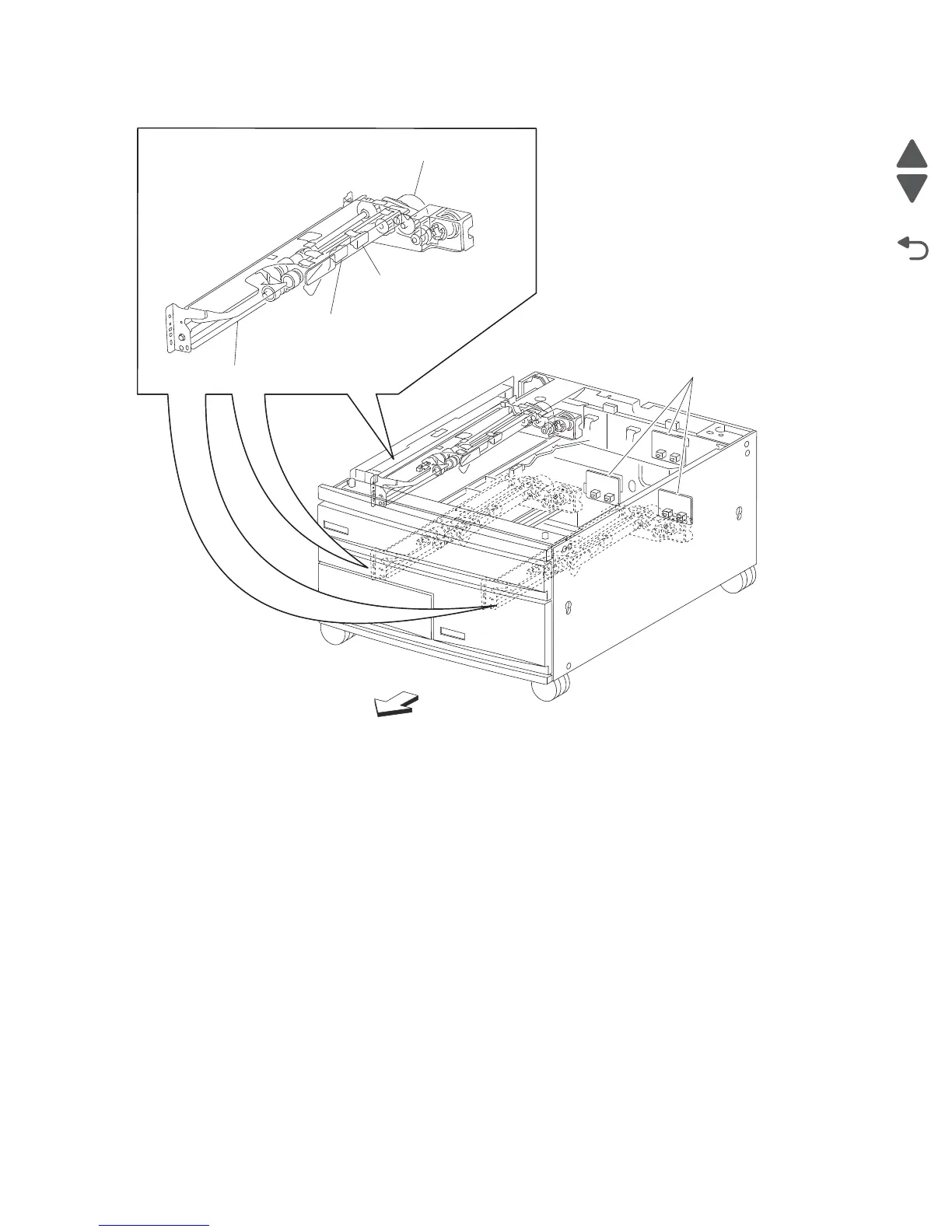

Main components
Switch (tray module left door interlock)
The switch (tray module left door interlock) detects open/close of the tray module left door assembly.
Sensor (tray 2 feed-out)
The sensor (tray 2 feed-out) detects media fed from trays 2, 3, or 4.
Sensor (tray 3 feed-out)
The sensor (tray 3 feed-out) detects media fed from the tray 3 or tray 4.
Sensor (tray 4 feed-out)
The sensor (tray 4 feed-out) detects media fed from the tray 4.
Tray module media transport roll assembly
The tray module transport roll assembly feeds media from the tray 3 or tray 4 to the printer.
Front
Switch (TTM media size)
Media feed lift motor
Sensor (media level)
Sensor (media out)
Media feed unit assembly
