4-44 Service Manual
7510

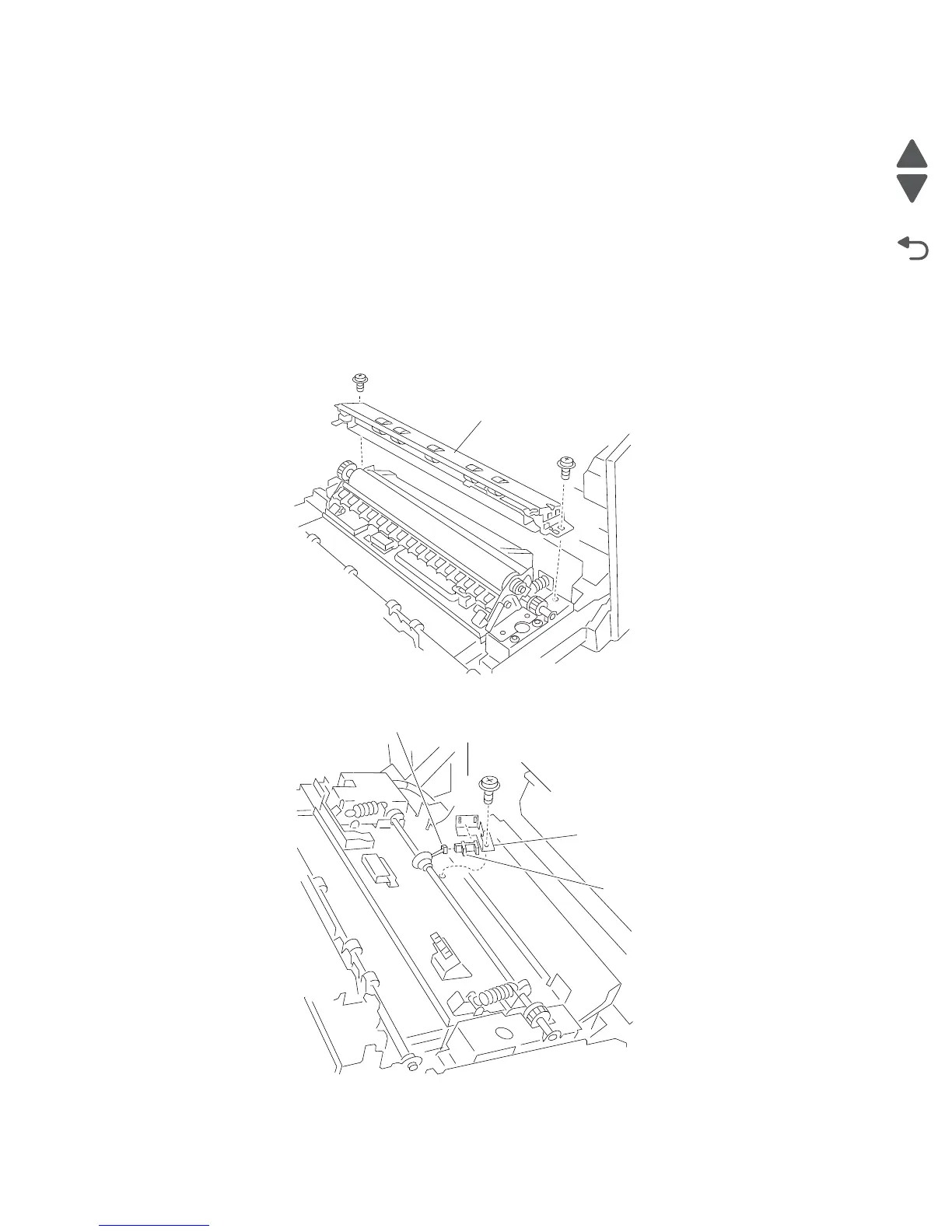

Sensor (2nd transfer roll retract HP) removal
1. Remove the 2nd transfer roll assembly. See “2nd transfer roll assembly removal” on page 4-45.
2. Remove the two screws securing the registration pinch guide assembly (A) to the machine.
3. Remove the registration pinch guide assembly (A).
4. Remove the screw securing the bracket (B) to the machine.
5. Slide the bracket (B) to remove it from the machine.
6. Move the bracket (B) toward the front of the machine.
7. Detach the bracket (B).
8. Disconnect the connector from the sensor (transfer roll retract HP) (C).
9. Release the hooks securing the sensor (transfer roll retract HP) (C) to the bracket (B).
10. Remove the sensor (transfer roll retract HP).
To Next Page
