1X 500-sheet drawer (1TM)—pick roll removal
1. Remove the media tray assembly.

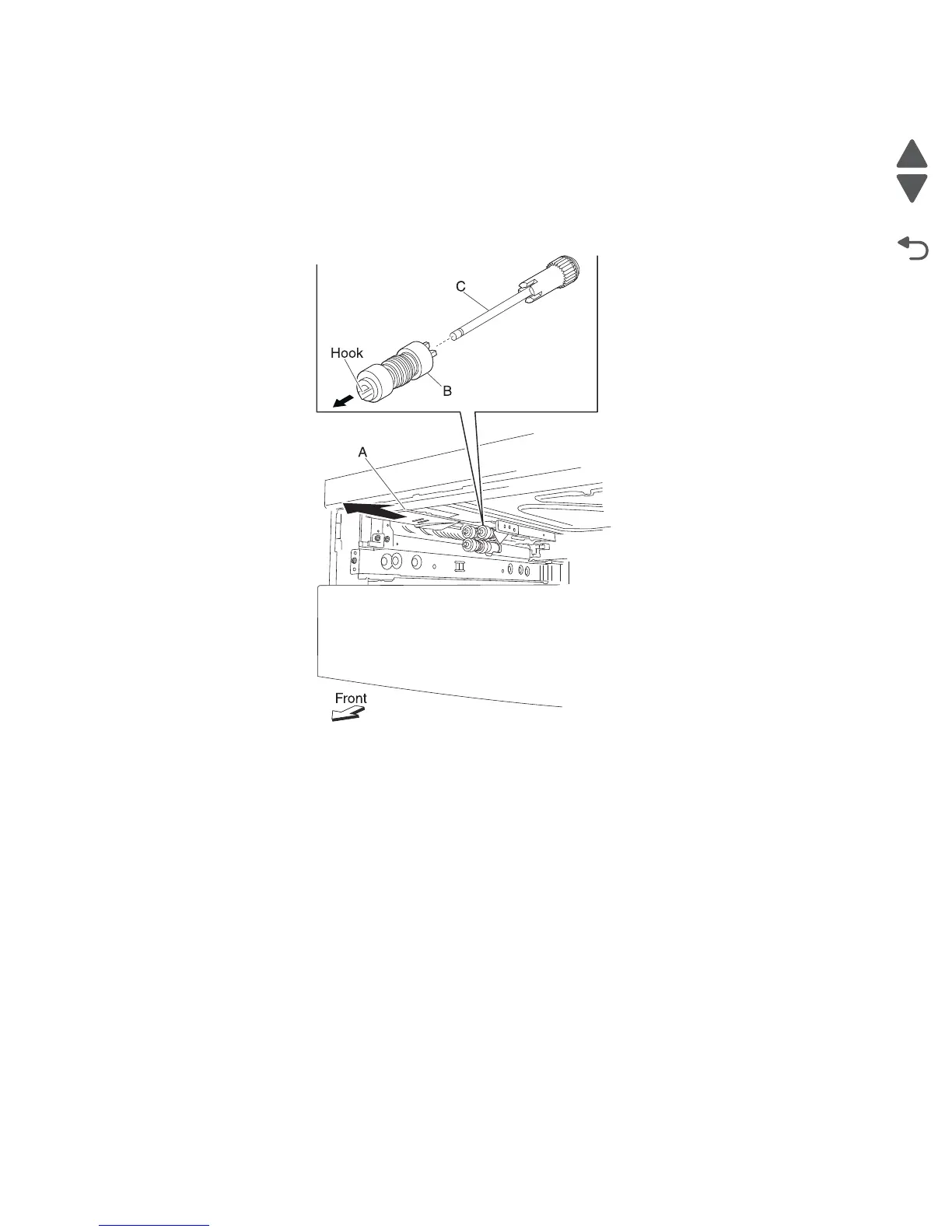

2. Move the front guide (A) toward the front in the direction of the arrow.
3. Release the hook securing the pick roll (B) to the shaft (C).
4. Remove the pick roll (B).
Note: Do not touch the rubber surface of the feed roll (B).
Replacement note: Before re-installing, do not touch the rubber surface of the pick roll (B).
