Sensor (media level) removal
1. Remove the printer left lower door assembly. See “Printer left lower door assembly removal” on
page 4-8.
2. Remove the appropriate media feed unit assembly. See “Media feed unit assembly 1 removal” on
page 4-31.
3. Disconnect the connector from the sensor (media level) (A).
4. Release the hooks securing the sensor (media level) (A) to the media feed unit.
5. Remove the sensor (media level) (A).

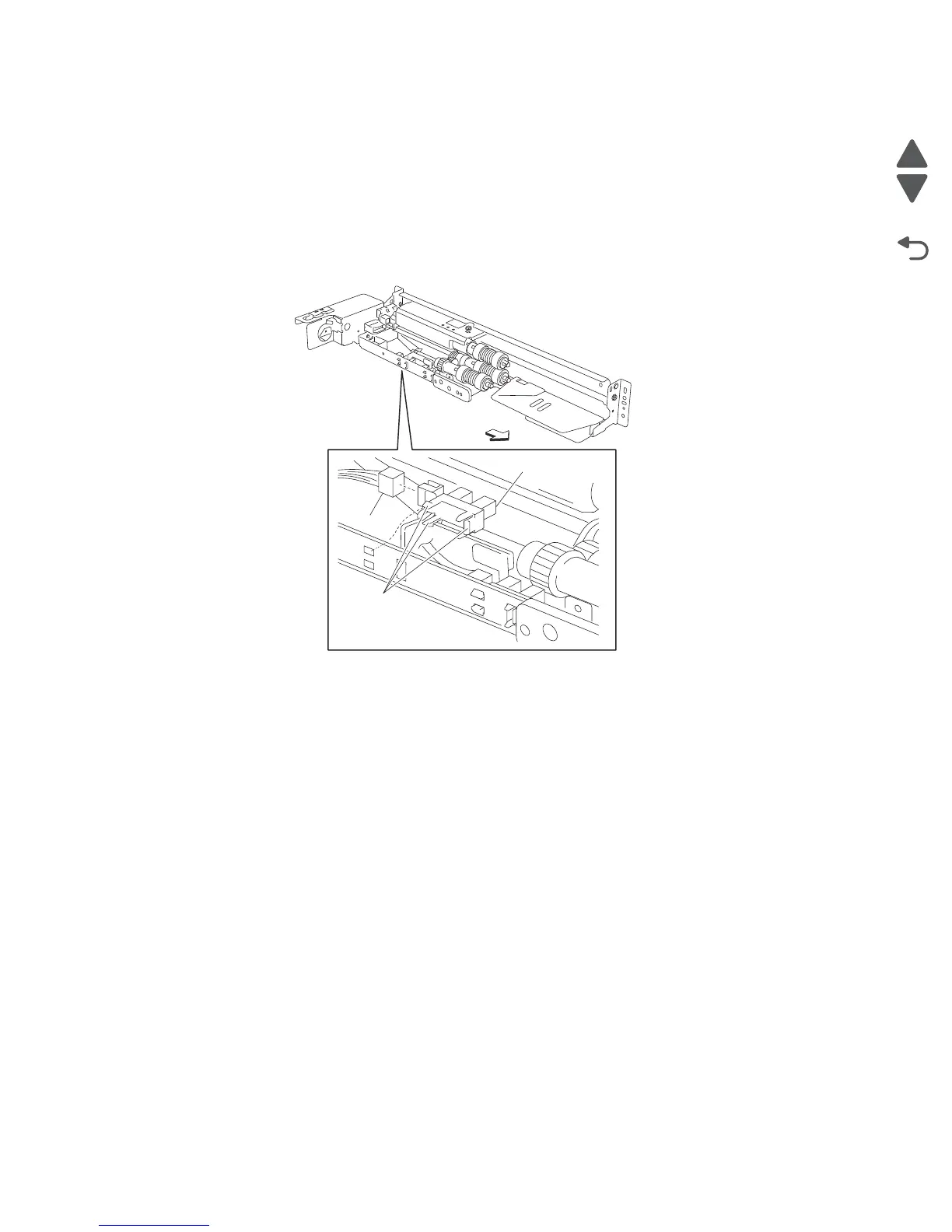

Front
Harness
Hooks
Lower view
A
