Parts catalog 7-87
7510
Go Back
Previous
Next

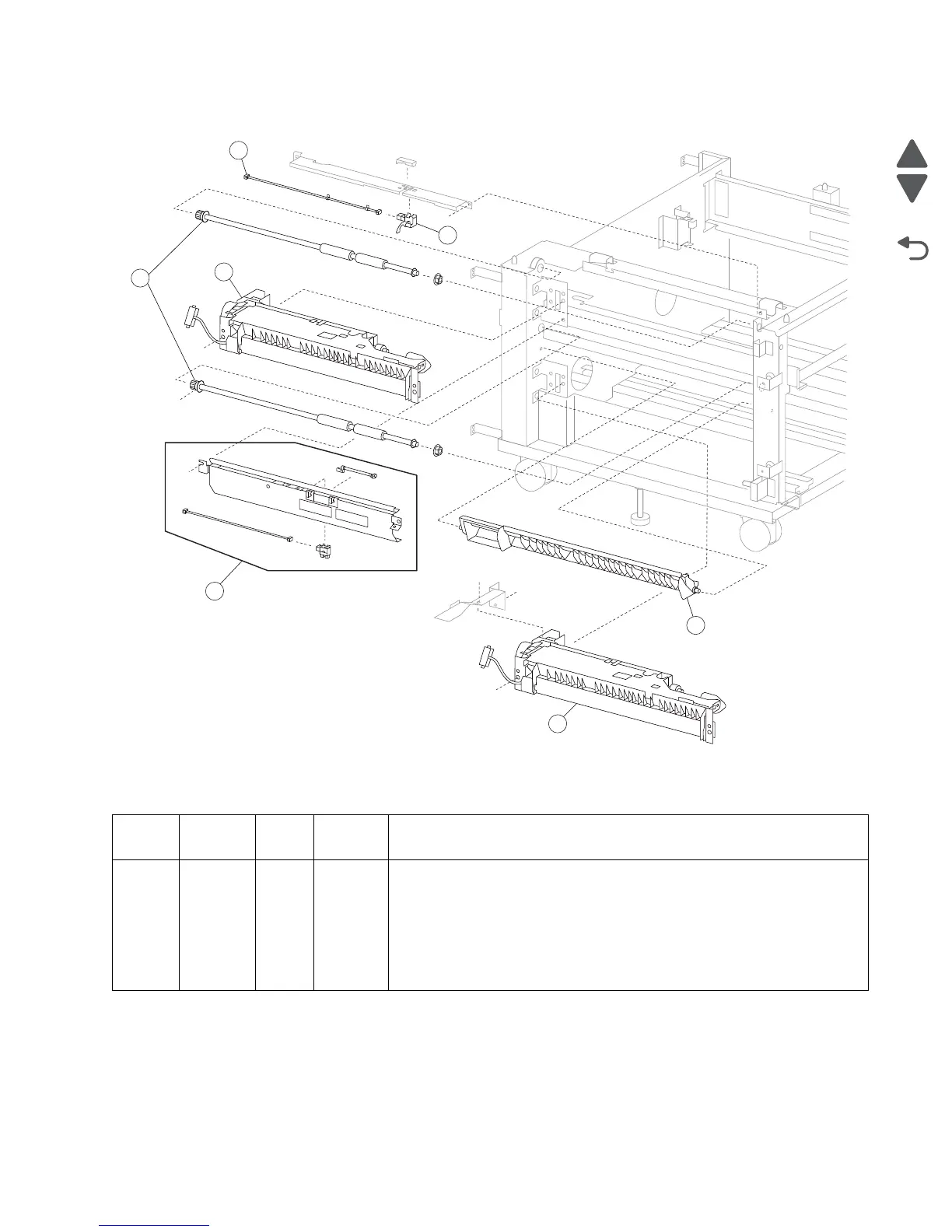

Assembly 64: TTM media transport
Asm-
index
Part
number
FRUs/
mach
Units/
FRU
Description
1 40X3817 2 1 Sensor (tray 2 feed-out)
2 40X3843 1 1 TTM vertical turn guide
3 40X3679 1 1 Media feed unit assembly
4 40X3842 1 1 Tray 3 feed-out sensor assembly (this comes assembled)
5 40X3818 2 1 Tray 2 feed-out sensor cable assembly
6 40X4119 2 1 Tray module media transport roll assembly
3
4
1
5
2
3
6
