Lexmark X945e MFP 7510 series - ADF Separation Roll Guide Assembly

4-162 Service Manual
7510
Go Back
Previous
Next
ADF separation roll guide assembly

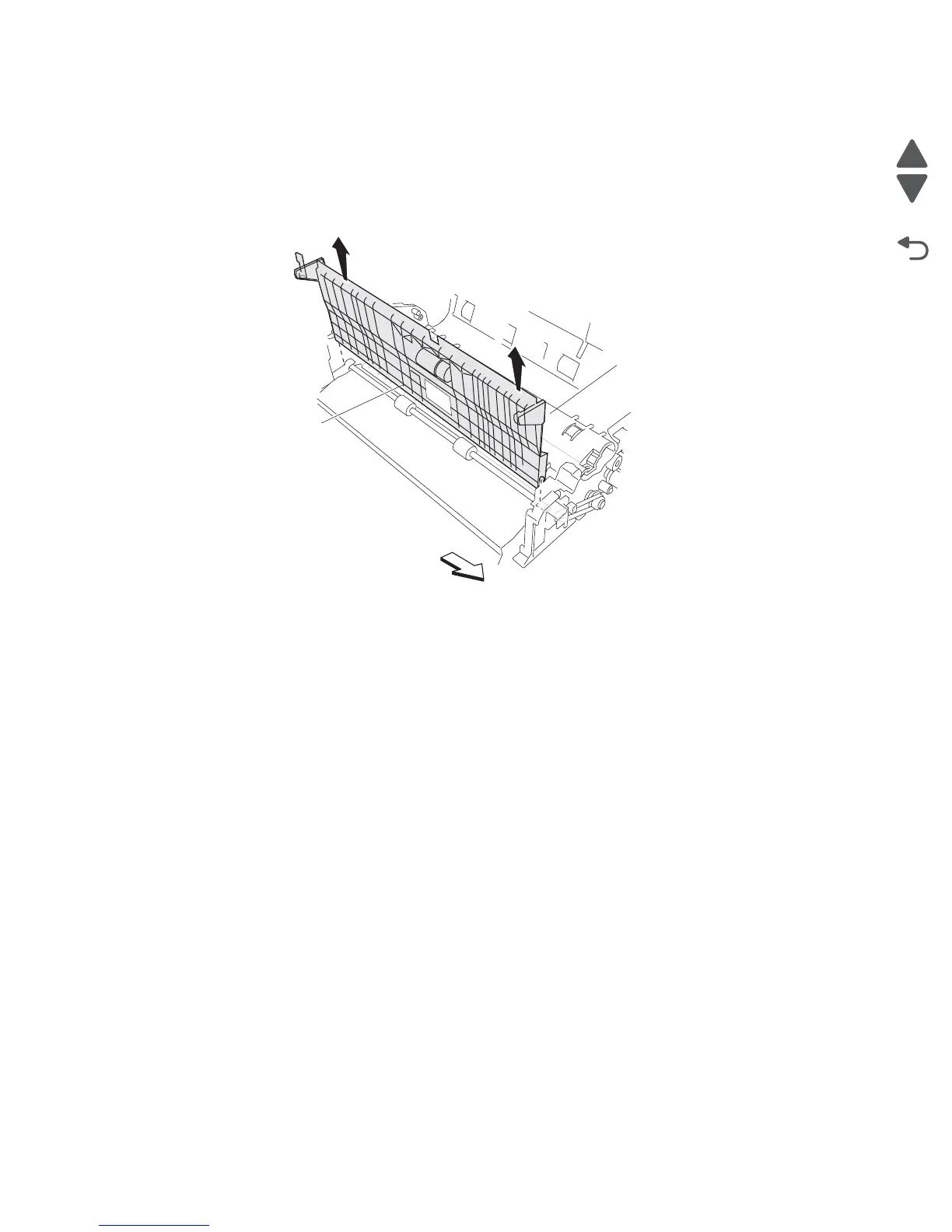

1. Open the ADF left cover assembly.
2. Lift the separation roll guide assembly (A) to it uppermost position.
3. Lift and remove the separation roll guide assembly (A).
Note: Extra upward force is required to remove the separation roll guide assembly.
A
B
Rear
