Repair information 4-225
7510

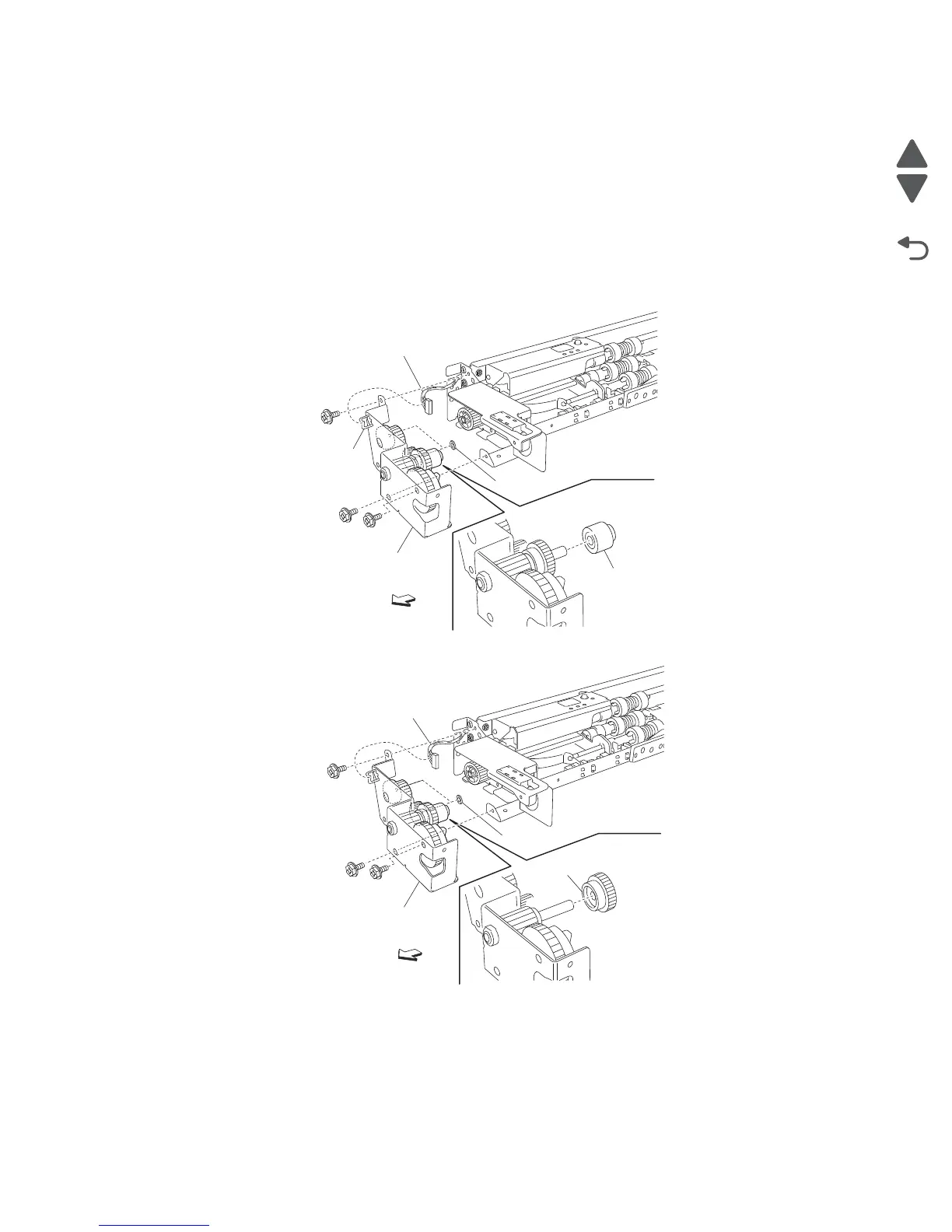

3X 500-sheet drawer (3TM)—one-way clutch / gear assembly removal
1. Remove the media feed unit assembly. See“3X 500-sheet drawer (3TM)—media feed unit assembly
removal (tray 2)” on page 4-222 or “3X 500-sheet drawer (3TM)—media feed unit assembly removal
(tray 3)” on page 4-220.
2. Remove the harness from the bracket (A).
3. Remove the three screws securing the bracket (A) to the media feed unit assembly.
4. Remove the bracket (A).
Note: The gears may become detached from the bracket (A).
5. Remove the tray lift one-way clutch (B).
6. Remove the tray lift one-way gear 24 tooth (C).
Replacement note: Before re-installing, ensure all gears and washers are securely attached to the bracket
(A).
