1-20 Service Manual
7510
Standard media exit roll assembly
The media exit roll assembly feeds printed media from the fuser to the standard bin.
Sensor (standard bin full)
The sensor (standard bin full) detects whether the standard bin is full by moving the actuator up and down.
Standard media exit shift motor
The standard media exit shift motor allows the standard media exit roll assembly to shift back and forth to perform
off-set sorting.
Duplex diverter gate
The duplex diverter gate switches the media transport path. When the duplex diverter gate is lifted, media is fed
to the standard bin. When it is lowered, media is fed to the duplex.
Drive
K developer/transport drive motor assembly
The K developer/transport drive motor is a DC motor that drives the K developer unit assembly, registration roll,
2nd transfer roll, fuser and standard media exit rolls.

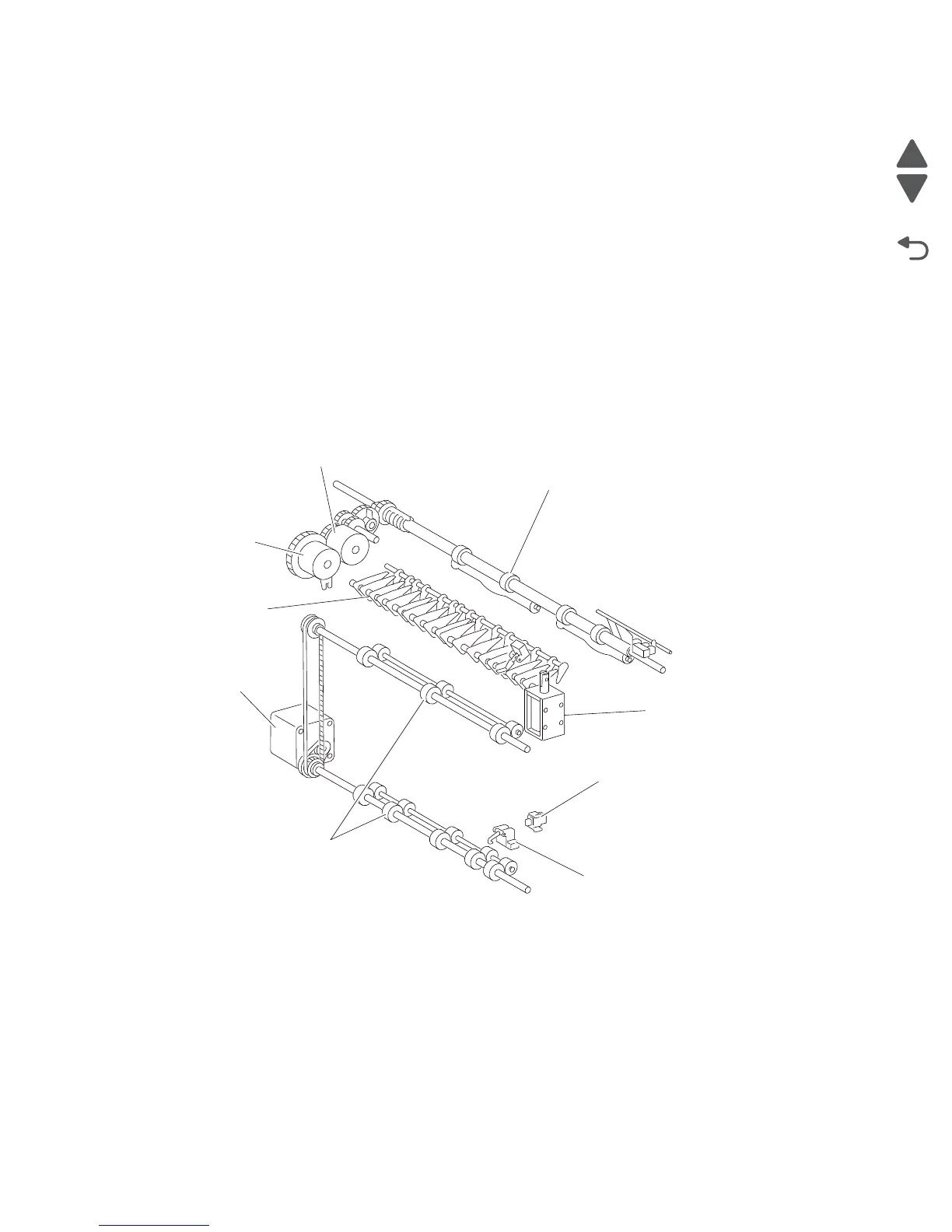

MPF/transport drive motor
Inverter
reverse
clutch
Inverter
forward
clutch
Standard media exit
roll assembly
Duplex diverter
solenoid
Sensor
(duplex wait)
Switch (duplex left
door interlock)
Duplex media
transport roll assembly
Duplex
drive
motor
Duplex
diverter gate
