4-220 Service Manual
7510

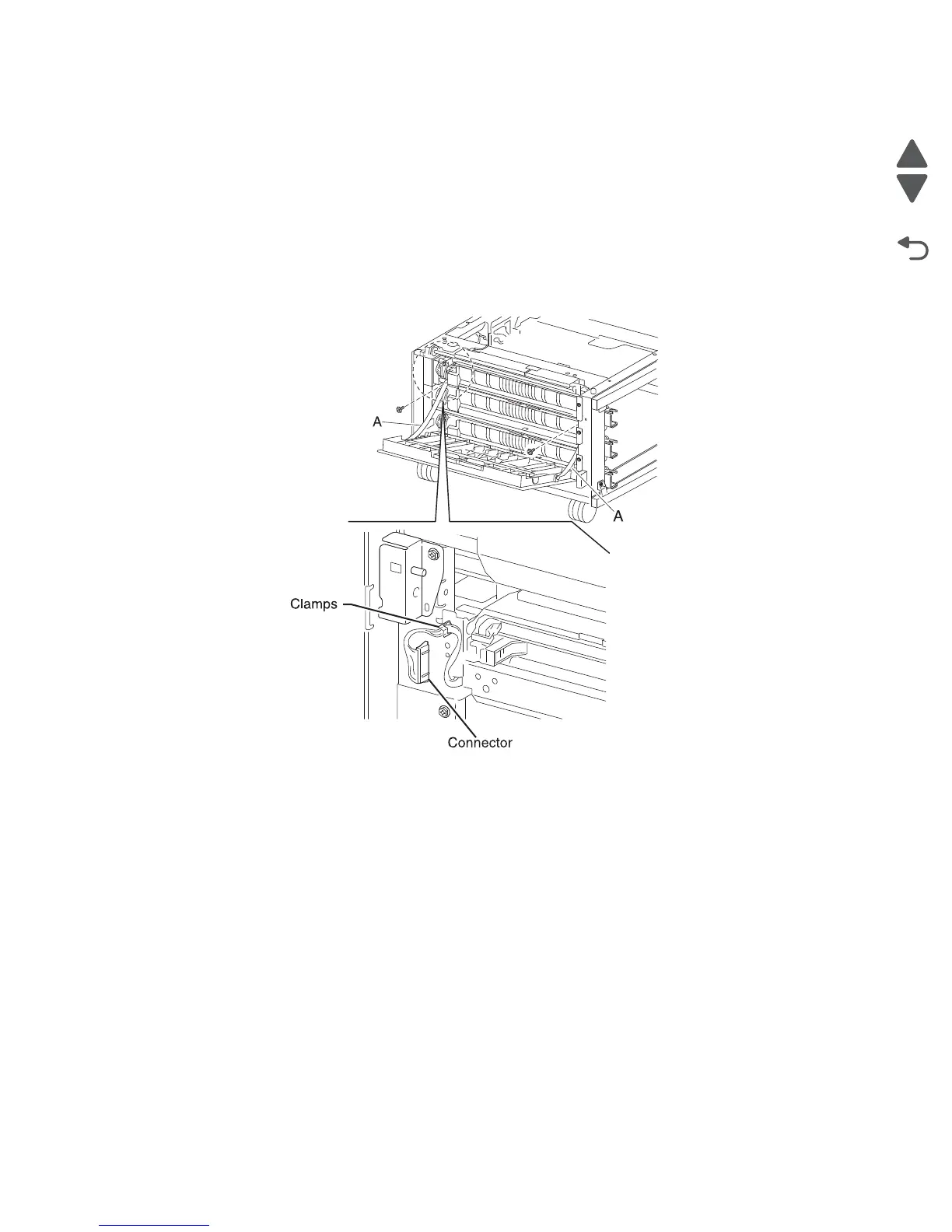

3X 500-sheet drawer (3TM)—media feed unit assembly removal (tray 3)
1. Remove the media tray 4 assembly.
2. Open the 3TM left door assembly.
3. Remove the two screws securing the two support straps (A) to the machine.
4. Release the harness from the clamp.
5. Disconnect the connector from the media feed unit assembly (B).
6. Remove the two screws securing the media feed unit assembly (B) to the machine.
7. Remove the media feed unit assembly (B).
