Repair information 4-119
7510

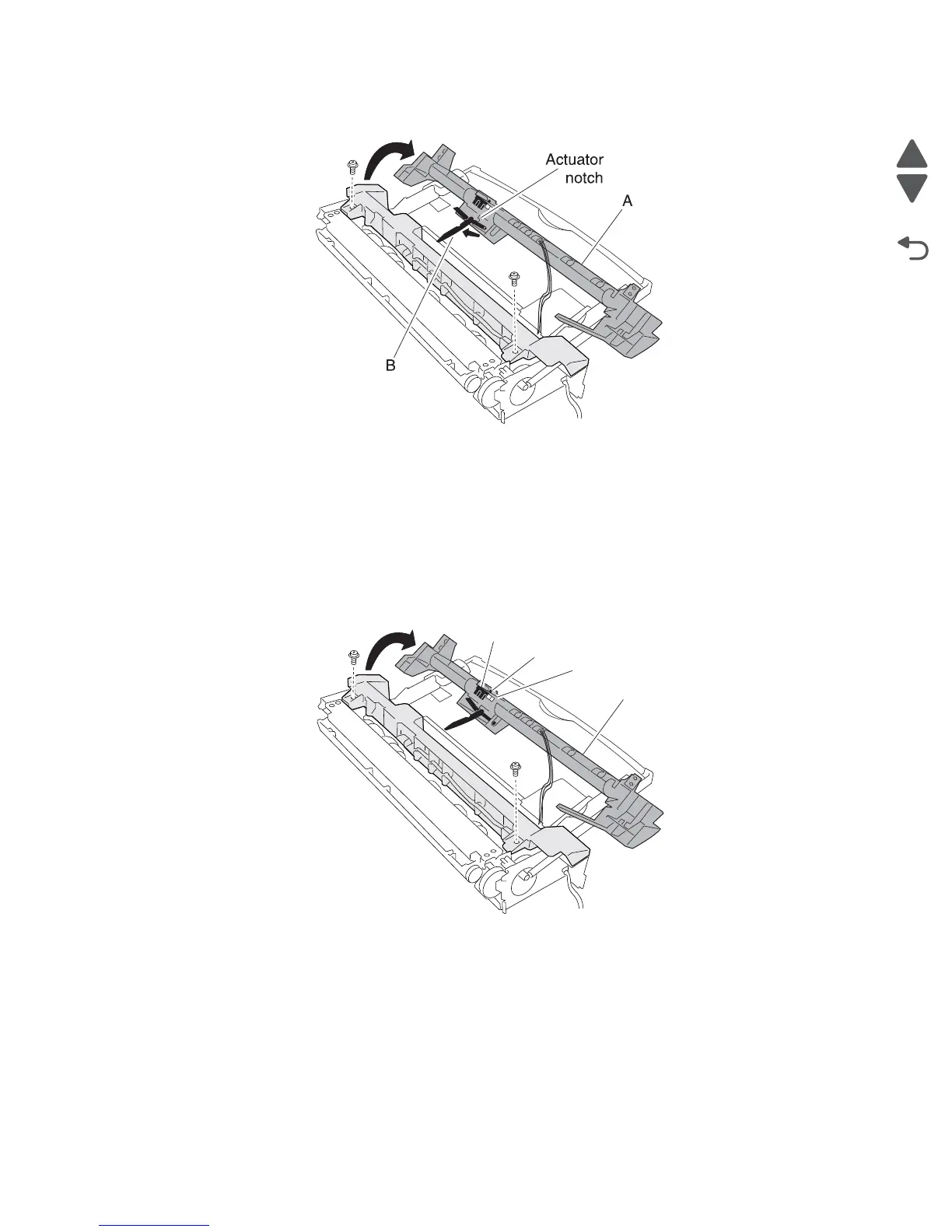

7. Remove the MPF media out actuator (B).
Sensor (MPF media out) removal
1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.
3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-8.
4. Remove the two screws securing the upper frame cover (A).
5. Remove the upper frame cover (A).
6. Release the hooks securing the sensor (MPF media out) (B) to the upper frame cover (A).
7. Remove the sensor (MPF media out) (B).
MPF pick roll assembly removal
1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.
3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-8.
4. Remove the three screws securing the MPF pinch roll assembly (A) to the MPF feed unit assembly (B).
5. Remove the MPF pinch roll assembly (A).
6. Release the two hooks of the two feed shaft cores (B), and move them both outwards in the directions in the
arrows.
Note: When removing the MPF feed roll assembly (C), do not touch the rubber surface.
To Next Page
