Lexmark X945e MFP 7510 series - Assembly 6: Media Tray

Parts catalog 7-7
7510
Go Back
Previous
Next

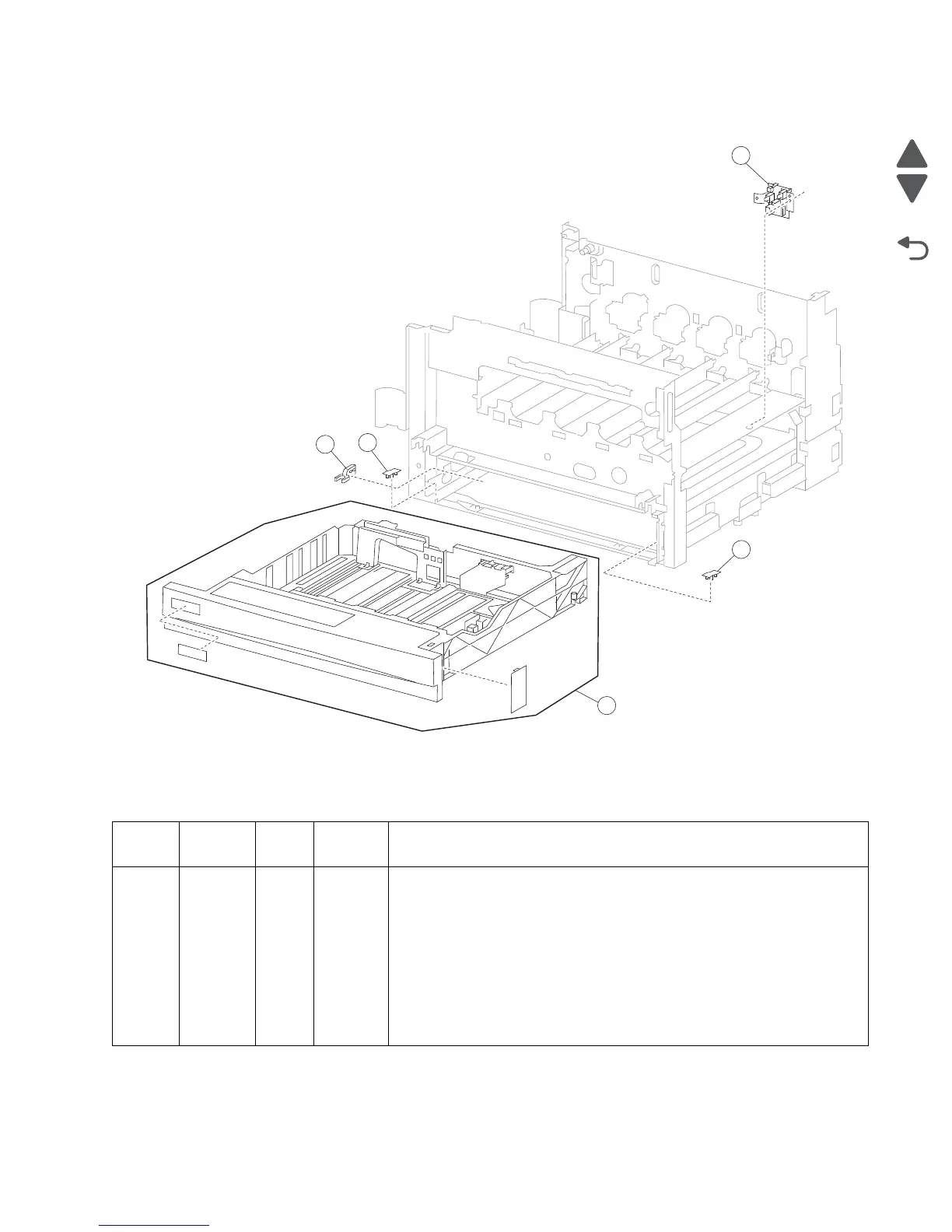

Assembly 6: Media tray
Asm-
index
Part
number
FRUs/
mach
Units/
FRU
Description
1 40X3677 2 1 Switch (media size)
2 40X3676 8 1 Media tray slide
3 40X3678 3 6 Media tray assembly kit
• Media tray assembly
• #1 label
• #2 label
• #3 label
• #4 label
• Instruction label
4 40X3675 2 1 Media tray catch
3
2
4
1
2
