2000-sheet dual input (TTM)—TTM media tray 3 assembly removal
1. Remove the tray module left cover. See “2000-sheet dual input (TTM)— tray module left cover removal”
on page 4-174.
2. Open the TTM left door assembly.

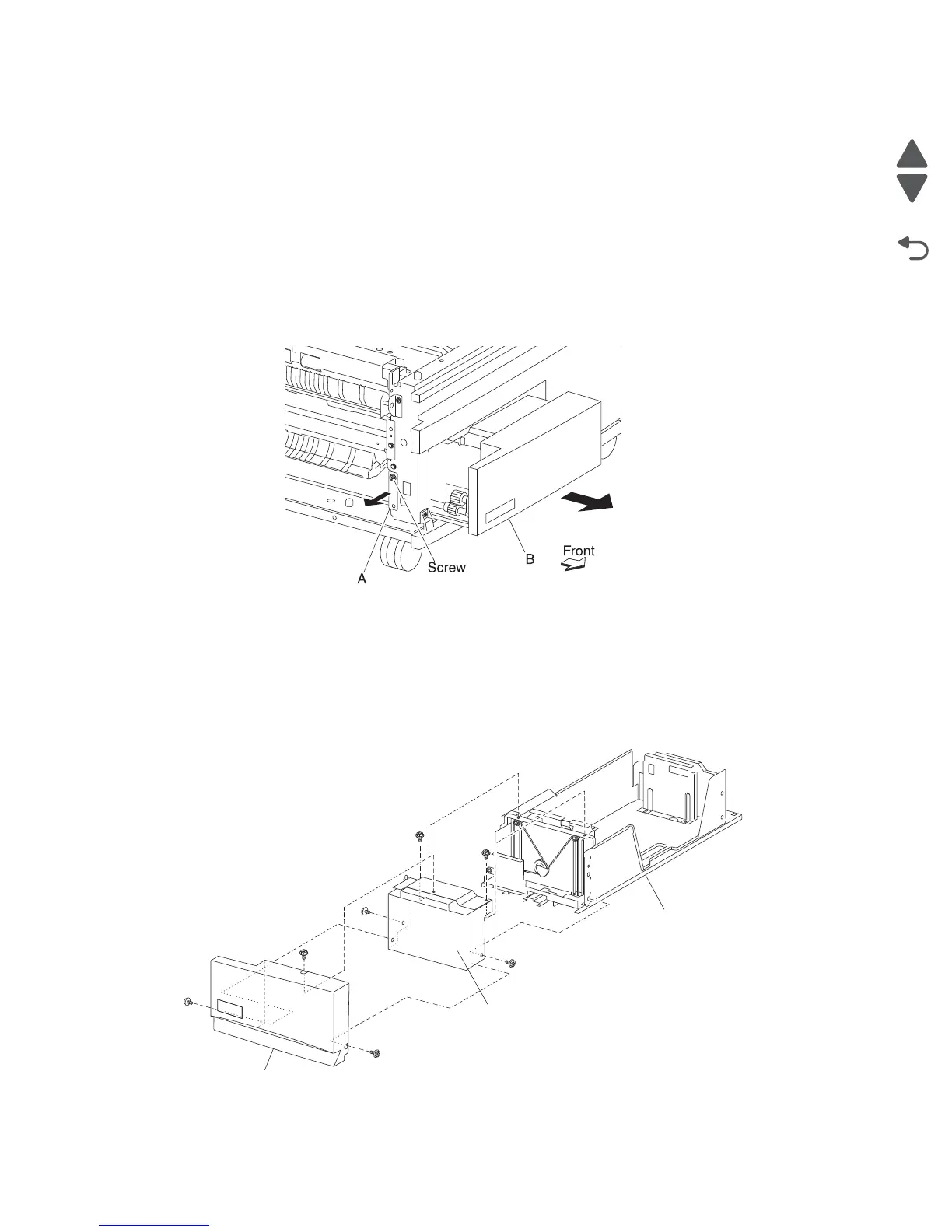

3. Loosen the screw securing the TTM tray 3 stopper (A).
4. Move the TTM tray 3 stopper (A) out in the direction of the arrow while pulling out the TTM media tray 3
assembly (B).
5. Remove the TTM media tray 3 assembly (B).
2000-sheet dual input (TTM)—tray 3 front cover removal
1. Pull out the TTM media tray 3 assembly.
2. Remove three screws securing the tray 3 front cover (A) to TTM media tray 3 assembly (B).
3. Remove the tray 3 front cover (A).
4. Remove the four screws securing the bracket (C) to the TTM media tray 3 assembly (B).
5. Remove the bracket (C).
