Repair information 4-189
7510
2000-sheet dual input (TTM) switch (media size) removal

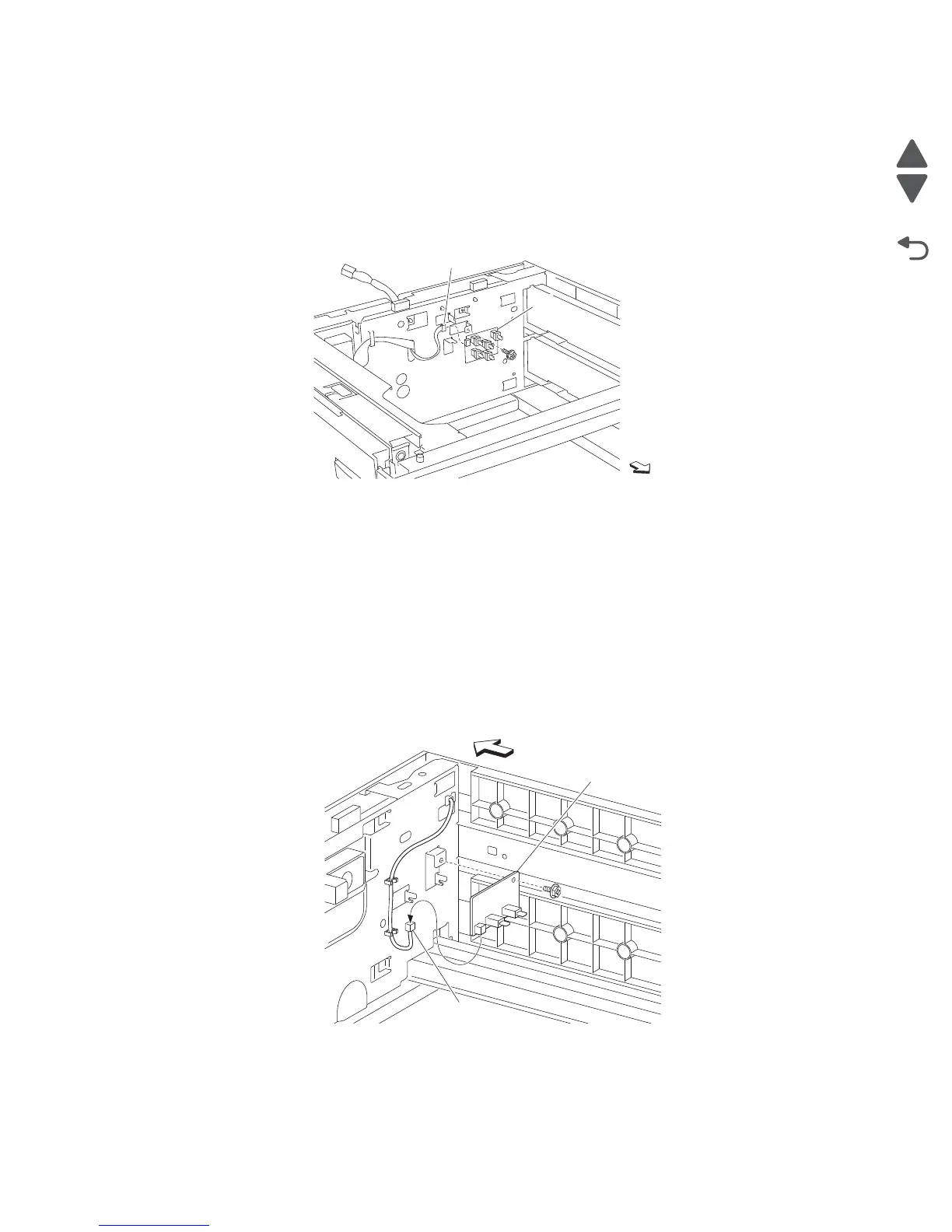

Note: This procedure can be applied to tray 1 or tray 2 switch (media size).
1. Remove media Tray 1 and media Tray 2.
2. Remove one screw securing the switch (media size) (A) to the bracket inside the machine.
3. Remove the connector from switch (media size) (A).
4. Remove the switch (media size) (A).
2000-sheet dual input (TTM)—switch (TTM media size) removal
Note: This removal procedure may be applied to TTM media tray 3 and TTM media tray 4.
1. Remove the tray module left cover. See “2000-sheet dual input (TTM)— tray module left cover removal”
on page 4-174.
2. Remove the TTM media tray 3 assembly See (“2000-sheet dual input (TTM)—TTM media tray 3
assembly removal” on page 4-178) or TTM media tray 4 assembly (“2000-sheet dual input (TTM)—TTM
media tray 4 assembly removal” on page 4-177).
3. Disconnect the connector from the switch (TTM media size) (A).
4. Remove one screw securing the switch (TTM media size) (A).
5. Remove the switch (TTM media size) (A).
