2000-sheet dual input (TTM)—tray 3 rear cable assembly removal
1. Remove the tray module left cover. See “2000-sheet dual input (TTM)— tray module left cover removal”
on page 4-174.
2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)—TTM media tray 3
assembly removal” on page 4-178.
3. Remove the tray 3 front cover. See “2000-sheet dual input (TTM)—tray 3 front cover removal” on
page 4-178.

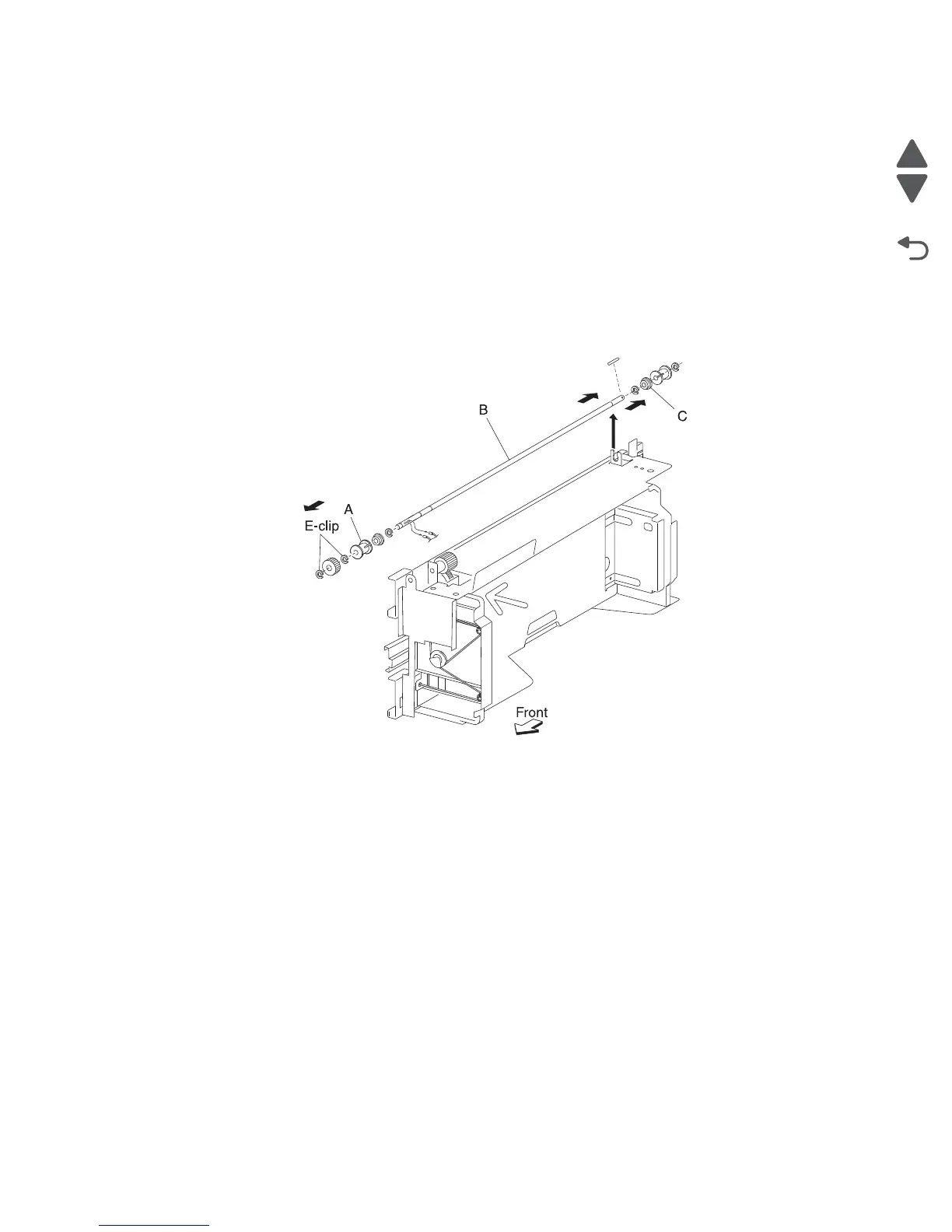

4. Remove the E-clip with a prying tool securing the front lift cable pulley (A) to the tray lift shaft assembly (B).
5. Gently move the tray lift shaft assembly (B) toward the rear of the tray, and detach the rear bushing (C) from
the frame.
Note: Do not remove the front lift cable pulley (A), or the front lift cables will become detached.
6. Move the rear portion of the tray lift shaft assembly (B) away from the frame.
