4-136 Service Manual
7510
Go Back
Previous
Next
ADF removals

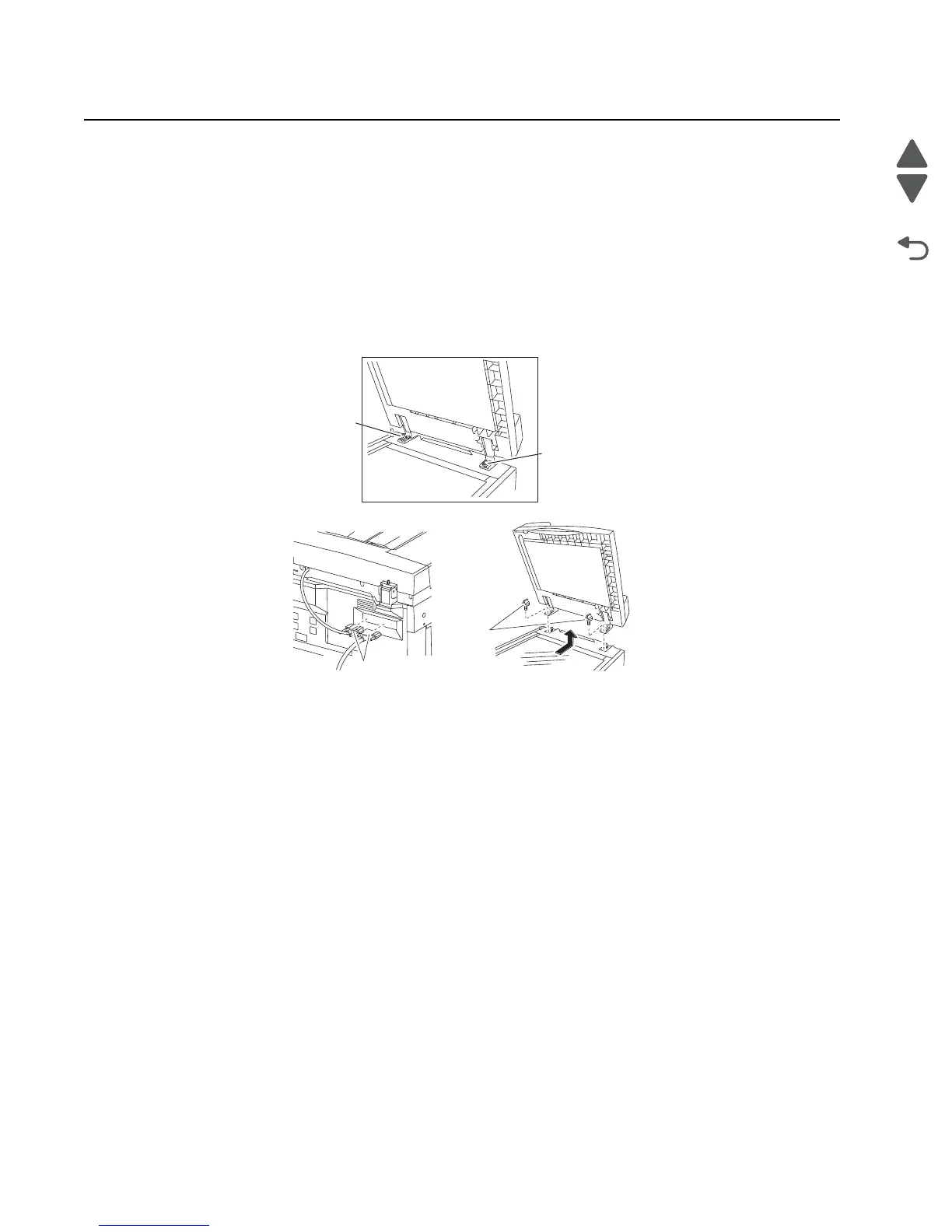

ADF unit assembly removal
Warning: The ADF is very heavy; do not drop it, or damage will occur.
1. Remove the platen cushion assembly. See “Platen cushion removal” on page 4-137.
2. Open the ADF to its full upright position.
3. Remove the connection from the ADF to the rear of the scanner unit assembly.
4. Remove the two ADF mounting screws (A).
5. Move the ADF slightly rearward, and then lift upward in the direction of the arrow.
6. Remove the ADF unit assembly.
A
A
A
Connectors
