4-186 Service Manual
7510

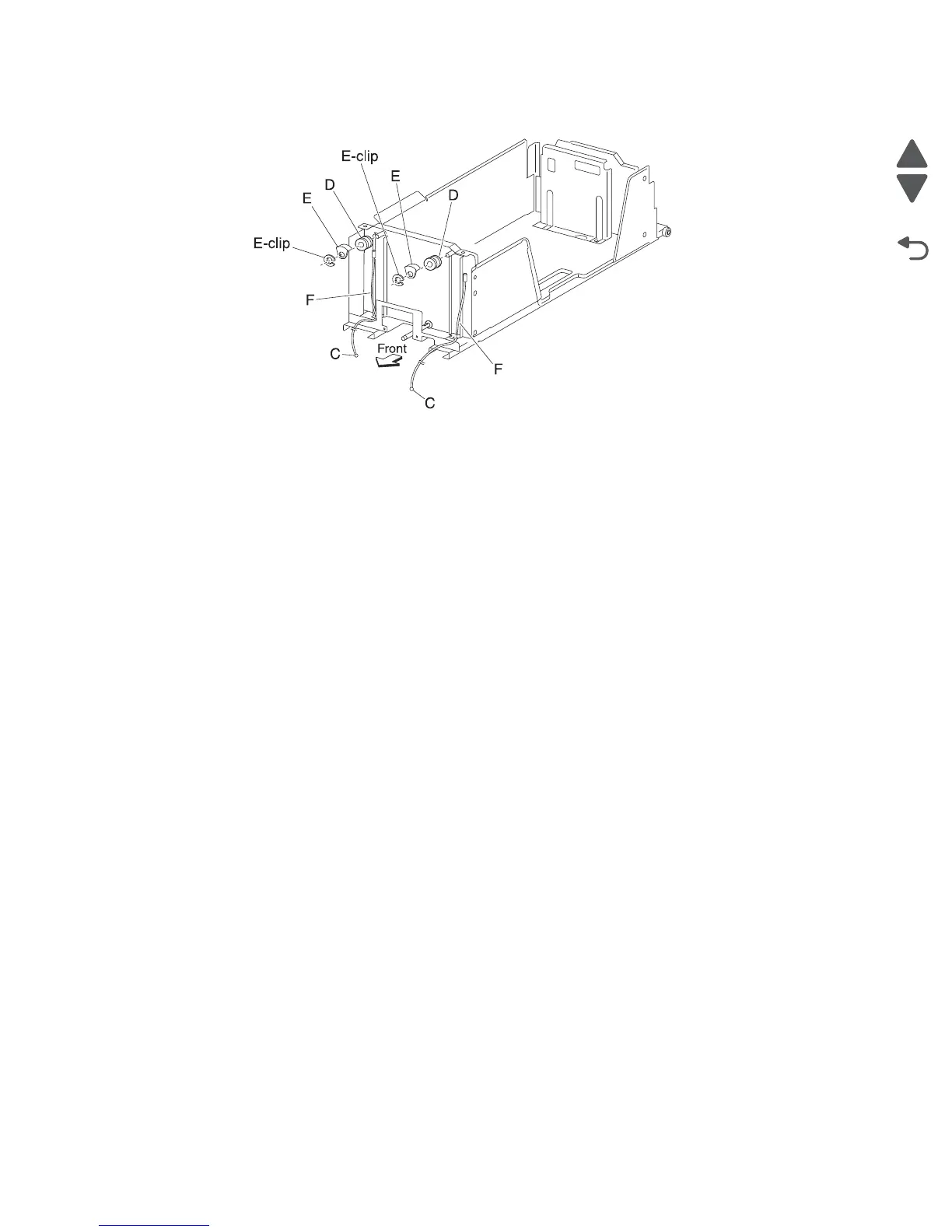

10. Remove the tray 4 front cables (C) from the bottom plates (F).
Replacement note: Before re-installing:
– It is recommended that all four cables be replaced.
– Ensure tray 4 front cables (C) are not twisted or kinked.
– Route the cables properly as shown in the figure.
– Replace the cables by setting the frame assembly (B) on its side as shown in the figure.
2000-sheet dual input (TTM)—media feed unit assembly removal (tray 4)
1. Remove the media tray 2 assembly.
2. Remove the tray module left cover. See “2000-sheet dual input (TTM)— tray module left cover removal”
on page 4-174.
3. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)—TTM media tray 3
assembly removal” on page 4-178.
4. Remove the TTM media tray 4 assembly. See “2000-sheet dual input (TTM)—TTM media tray 4
assembly removal” on page 4-177.
5. Remove the tray 4 media transport assembly. See “2000-sheet dual input (TTM)—TTM tray 4 media
transport assembly removal” on page 4-182.
6. Disconnect the two connectors from the media feed unit assembly (A).
