Lexmark X945e MFP 7510 series User Manual

Repair information 4-187
7510
Go Back
Previous
Next

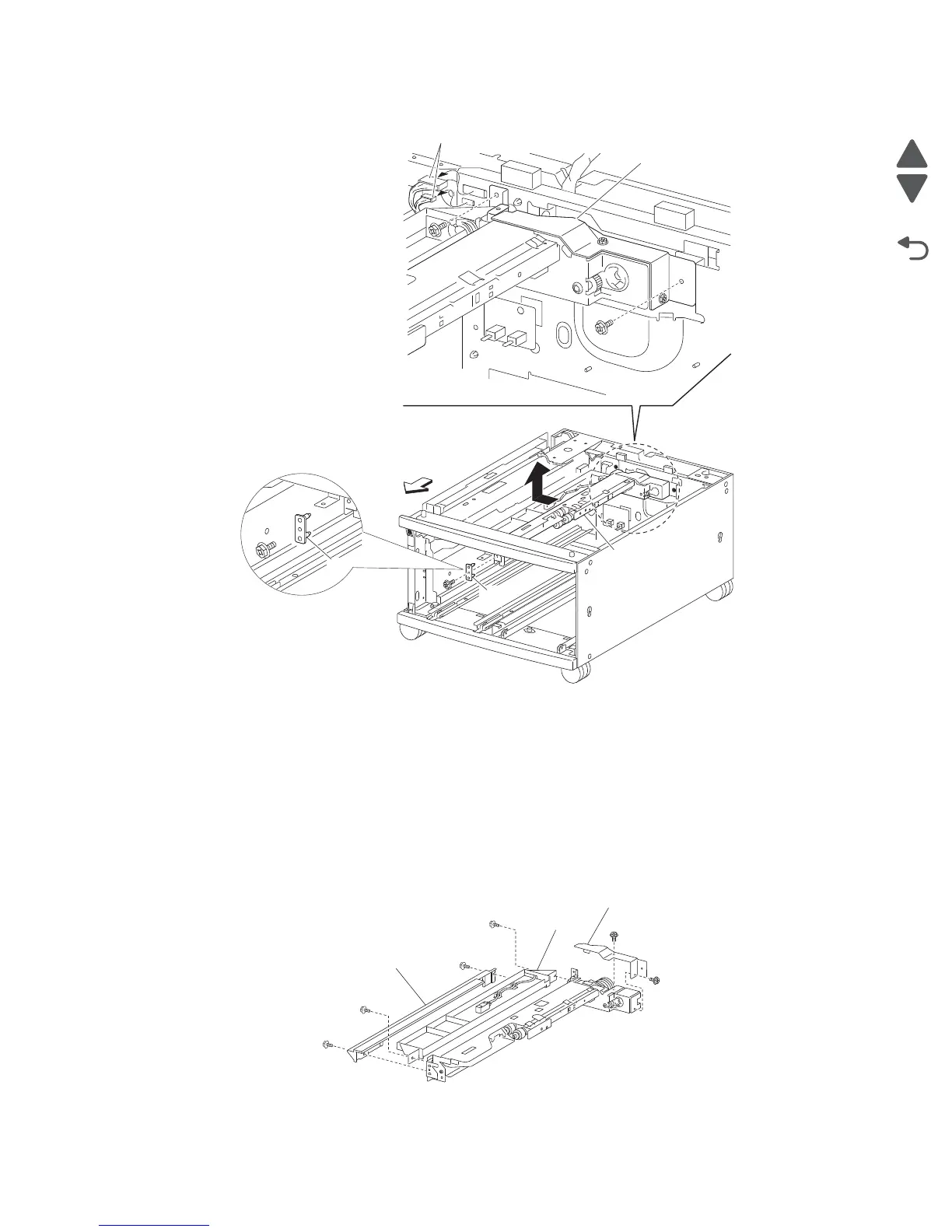

7. Remove the two screws securing the media feed unit assembly (A).
8. Remove one screw securing the front bracket (B) to the machine.
9. Remove the front bracket (B).
10. Move the media feed unit assembly (A) to the left and up in the direction of the arrow.
11. Remove the media feed unit assembly (A).
12. Remove the two screws securing the lower guide (C) to the media feed unit assembly (A).
13. Remove the lower guide (C).
14. Remove the two screws securing the upper guide (D) to the media feed unit assembly (A).
15. Remove the upper guide (D).
16. Remove the two screws securing the rear bracket (E) to the media feed unit assembly (A).
17. Remove the rear bracket (E).
Connectors
A
A
B
Front
B
C
D
E
