4-78 Service Manual
7510
Go Back
Previous
Next

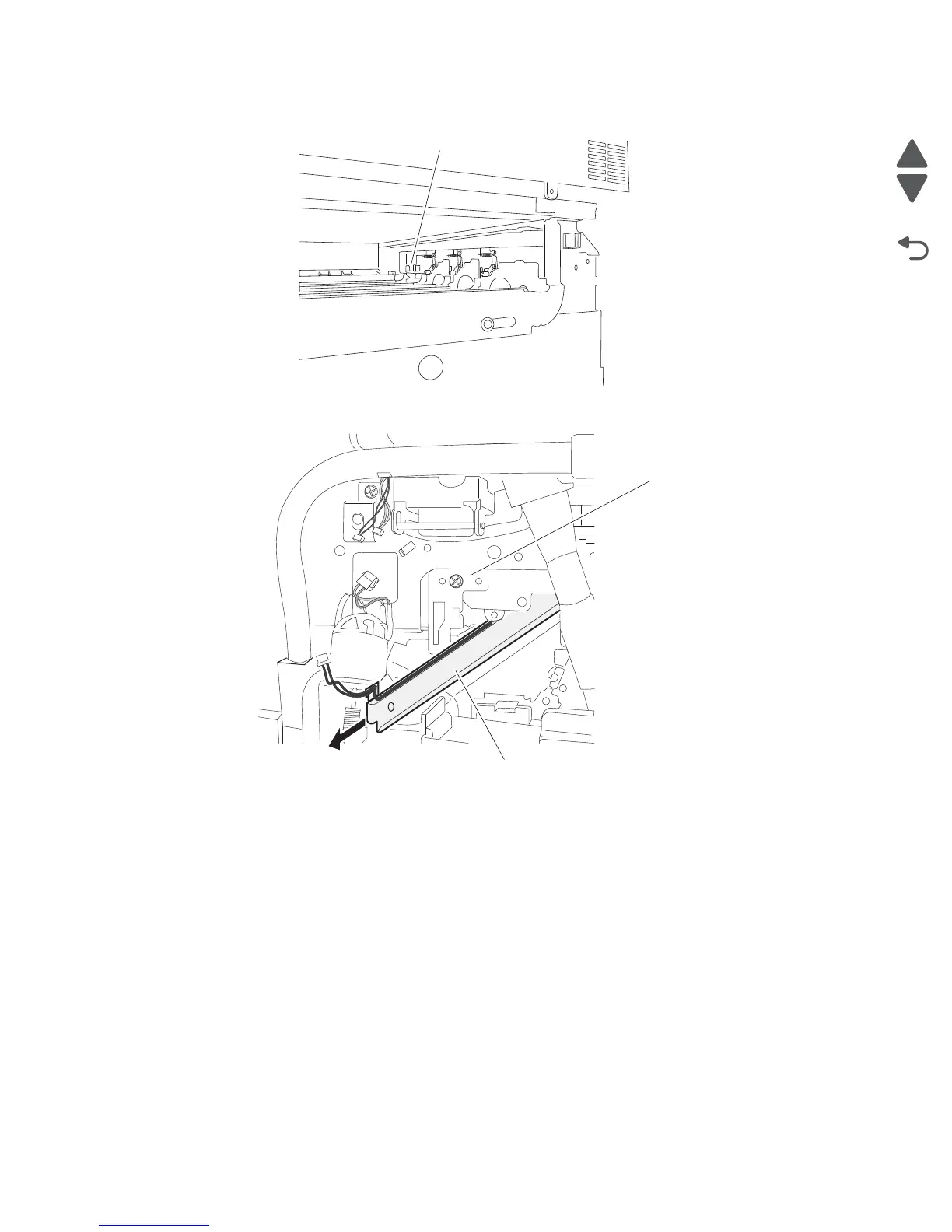

Printhead shutter motor assembly
1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.
3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-8.
4. Remove the printer left door assembly. See “Printer left door assembly removal” on page 4-36.
5. Remove the registration transport roll assembly. See “Registration / transport roll assembly removal” on
page 4-46.
6. Disconnect the connector from the printhead shutter motor assembly (A).
7. Remove the two screws securing the printhead shutter motor assembly (A) to the machine.
8. Remove the printhead shutter motor assembly (A) from the machine.
Mounting hook
B
C
