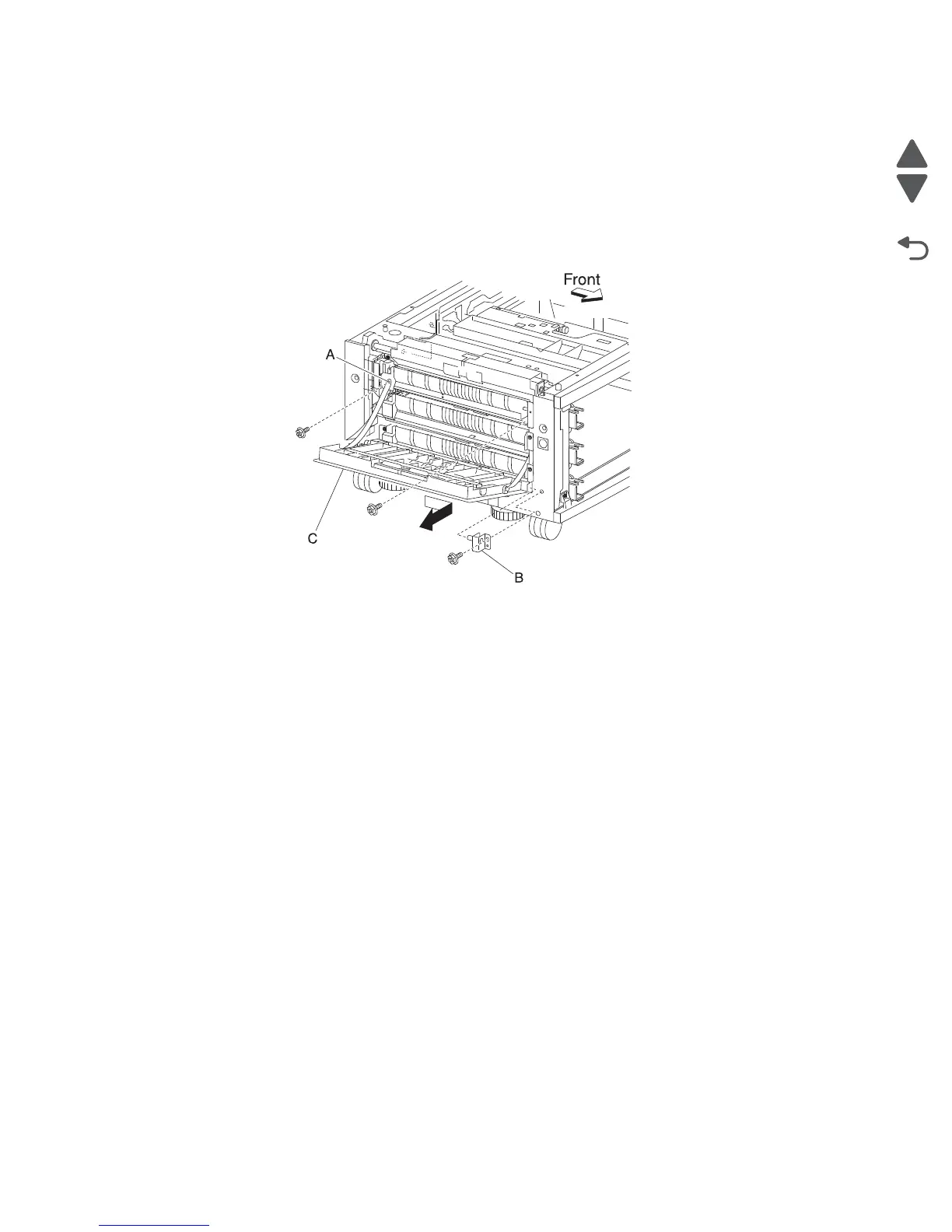

3X 500-sheet drawer (3TM)—3TM left door assembly removal
1. Open the 3TM left door assembly.
2. Remove the two screws securing the two supports straps (A) to the machine.
3. Remove the screw securing the bracket (B) to the machine.
4. Remove the bracket (B).
5. Move the tray module left door assembly (C) to the front and out in the direction of the arrow.
6. Remove the tray module left door assembly (C).
3X 500-sheet drawer (3TM)—switch (tray module left door interlock) removal
1. Open the 3TM left door assembly.
2. Remove the screw securing the support strap (A) to the machine.
3. Remove the screw securing the bracket (B) to the machine.
4. Remove the bracket (B).
5. Disconnect the two connectors from the switch (tray module left door interlock) (C).
6. Remove the two screws securing the switch (tray module left door interlock) (C) to the bracket (B).
