Repair information 4-17
7510
Transfer belt cleaning assembly removal
Warning: When removing the transfer belt unit assembly, do not touch the belt surface, or damage will
occur.

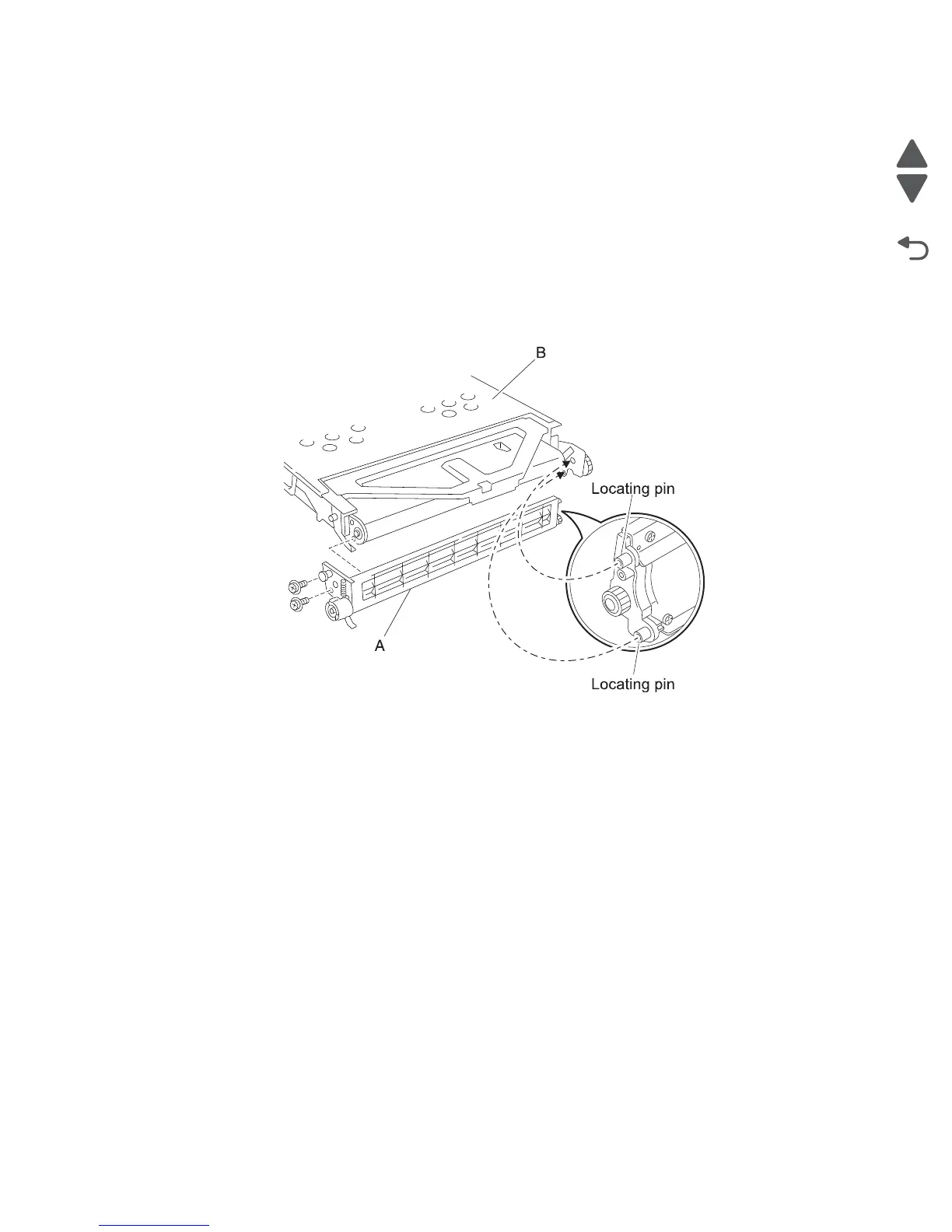

Note: It is not required to completely remove the transfer belt unit assembly (B) from the machine. It can be
partially pulled out to provide access to the transfer belt cleaning assembly (A).
1. Remove the transfer belt unit assembly. See “Transfer belt unit assembly removal” on page 4-16.
2. Remove the two screws securing the transfer belt cleaning assembly (A) to the transfer belt unit assembly
(B).
3. Remove the transfer belt cleaning assembly (A).
Replacement warning: When reinstalling the transfer belt unit assembly, do not touch the belt surface, or
damage will occur.
