4-192 Service Manual
7510

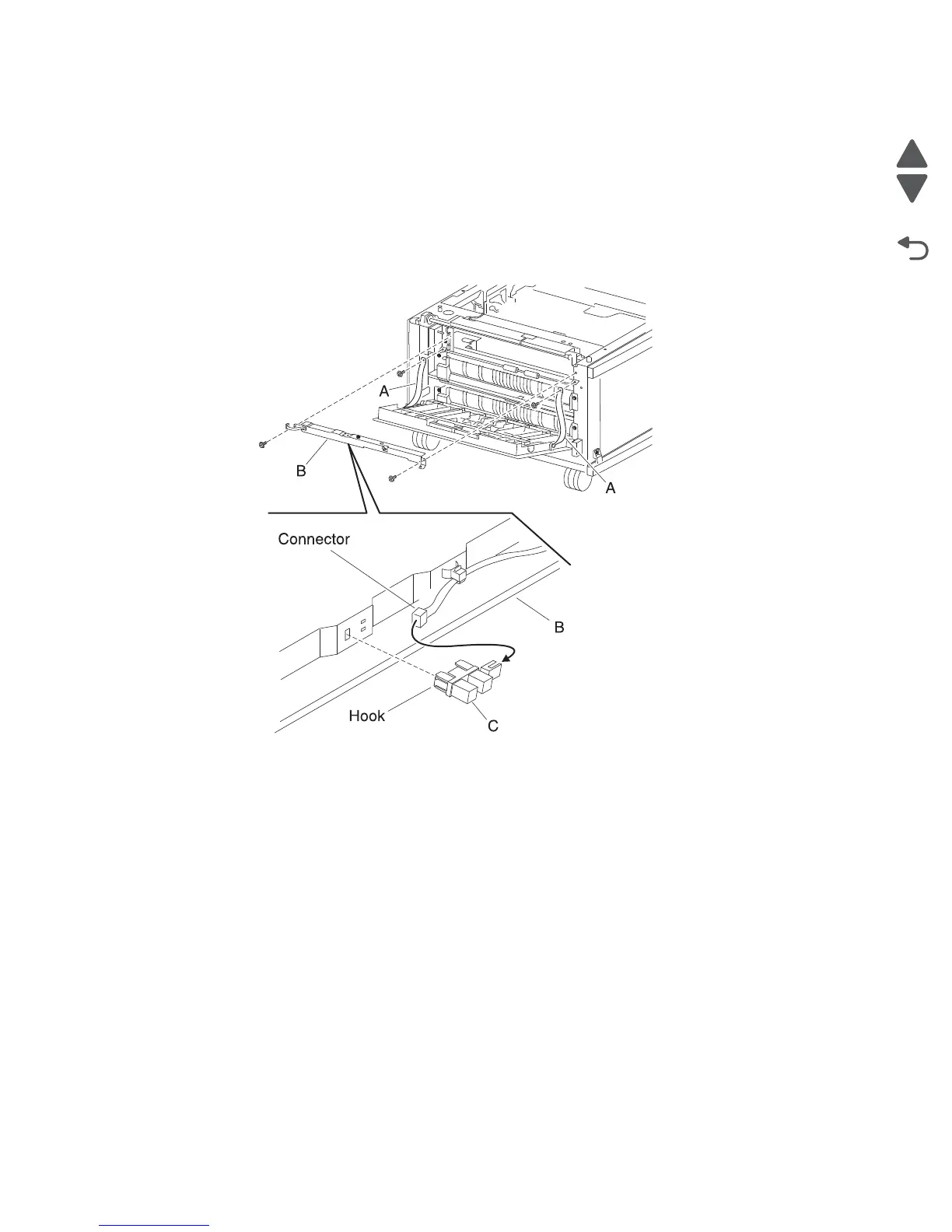

2000-sheet dual input (TTM)—sensor (tray 3 feed-out) removal
1. Open the TTM left door assembly.
2. Remove the two screws securing the two support straps (A) to the machine.
3. Disconnect the connector to the bracket (B).
4. Remove the two screws securing the bracket (B) to the machine.
5. Remove the bracket (B).
6. Release the hooks securing the sensor (tray 3 feed-out) (C) to the bracket (B).
7. Remove the sensor (tray 3 feed-out) (C).
