Repair information 4-75
7510
Transfer belt steering motor removal
1. Remove the front left cover. See “Front left cover removal” on page 4-9.
2. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal” on page 4-49.
3. Remove the waste toner cartridge sensor assembly. See “Waste toner cartridge sensor assembly
removal” on page 4-49.
4. Remove the sensor (waste toner cartridge full). See “Sensor (waste toner cartridge full) removal” on
page 4-50.
5. Remove the inner cover assembly. See “Inner cover removal” on page 4-53.

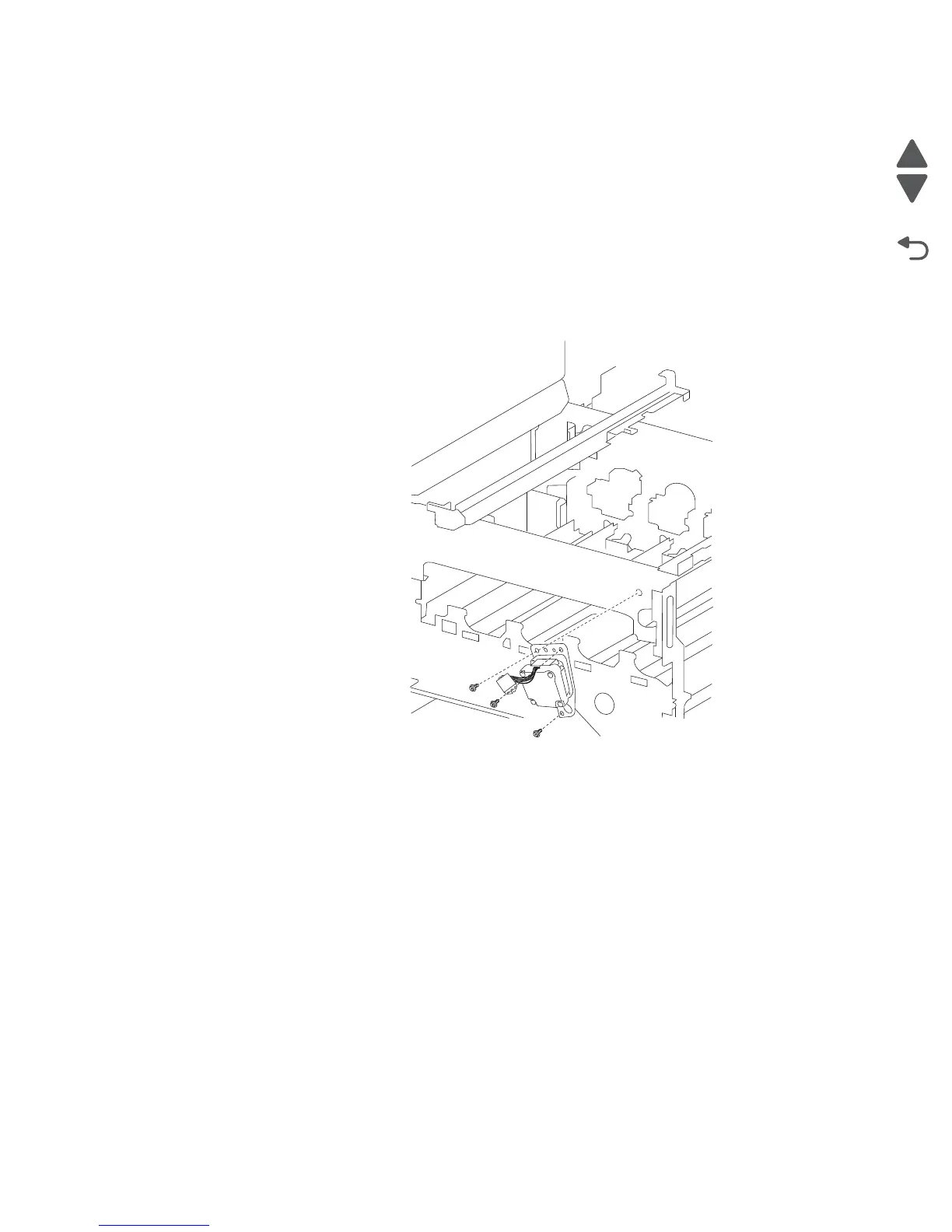

6. Disconnect the connector transfer belt steering motor (A).
7. Remove the three screws securing the transfer belt steering belt motor (A) to the machine.
8. Remove the transfer belt steering motor (A).
CMY erase lamp assembly removal
Warning: Ensure the transfer belt unit assembly is removed, or damage will occur.
1. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-3.
2. Remove the front left cover. See “Front left cover removal” on page 4-9.
3. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal” on page 4-49.
4. Remove the waste toner cartridge sensor assembly. See “Waste toner cartridge sensor assembly
removal” on page 4-49.
5. Remove the sensor (waste toner cartridge full). See “Sensor (waste toner cartridge full) removal” on
page 4-50
6. Remove the inner cover. See “Inner cover removal” on page 4-53.
7. Raise the transfer belt lift handle (A) to its upper-most position.
8. Disconnect the connector from the appropriate CMY erase lamp assembly (B).
9. Release the harness from the clamp.
10. Remove the screw securing the appropriate bracket (C) to the machine.
11. Lower the transfer belt lift handle (A) to its lower-most position.
Note: Access to the rear mounting hook on the CMY erase lamp (B) can be gained by reaching into the
transfer belt unit opening from the right side of the machine.
