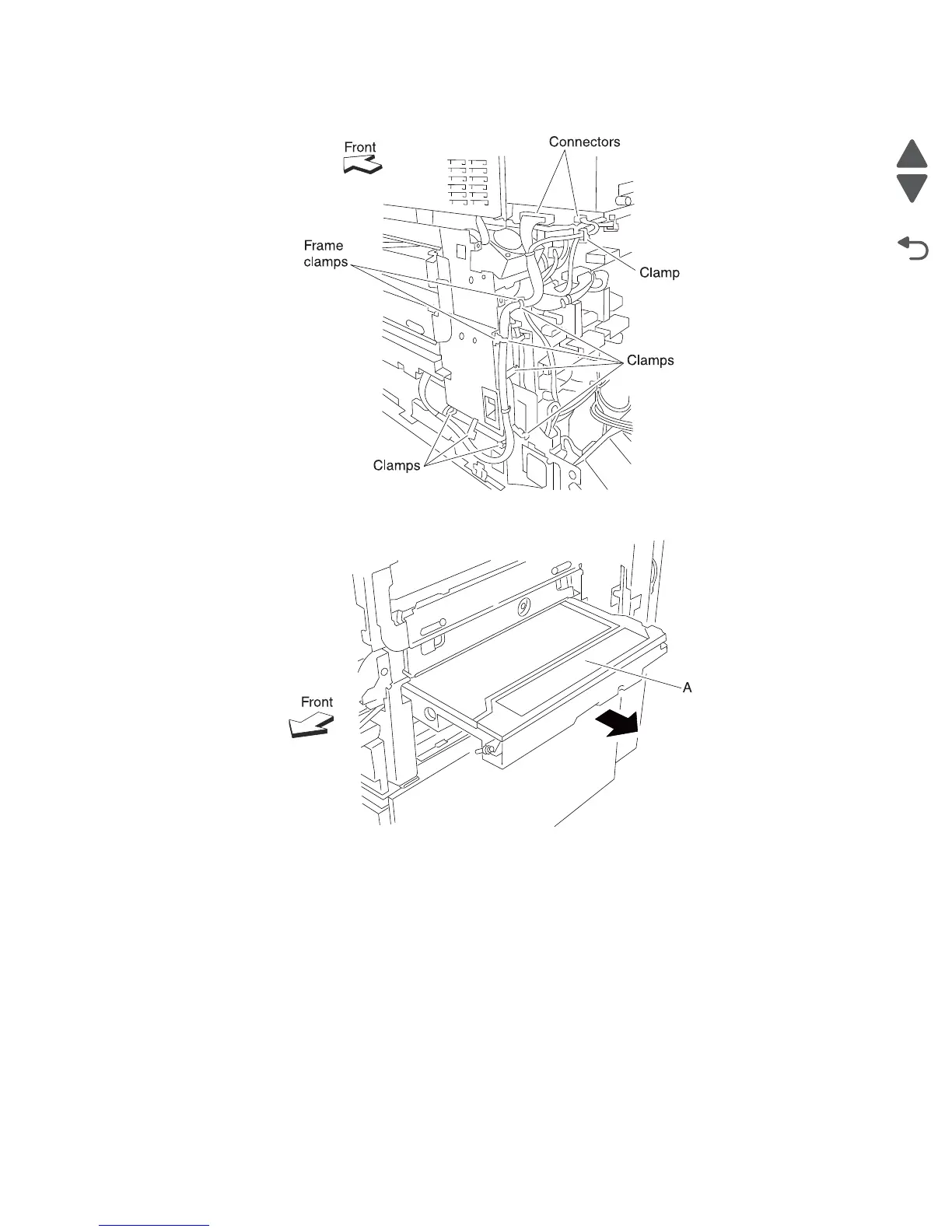

9. Gently pull the printhead assembly (A) from the machine.
Replacement warning: When replacing the printhead assembly, perform the color registration (RegCon)
setup and adjustment. See “” on page 4-264.
Transfer belt waste toner auger assembly removal
1. Remove the transfer belt unit assembly. See “Transfer belt unit assembly removal” on page 4-16.
2. Remove the two screws securing the transfer belt waste toner auger assembly (A).
3. Detach the bushing (B) from the transfer belt waste toner auger assembly (A).
4. Move the transfer belt waste toner auger assembly (A) toward the rear of the machine.
