4-110 Service Manual
7510

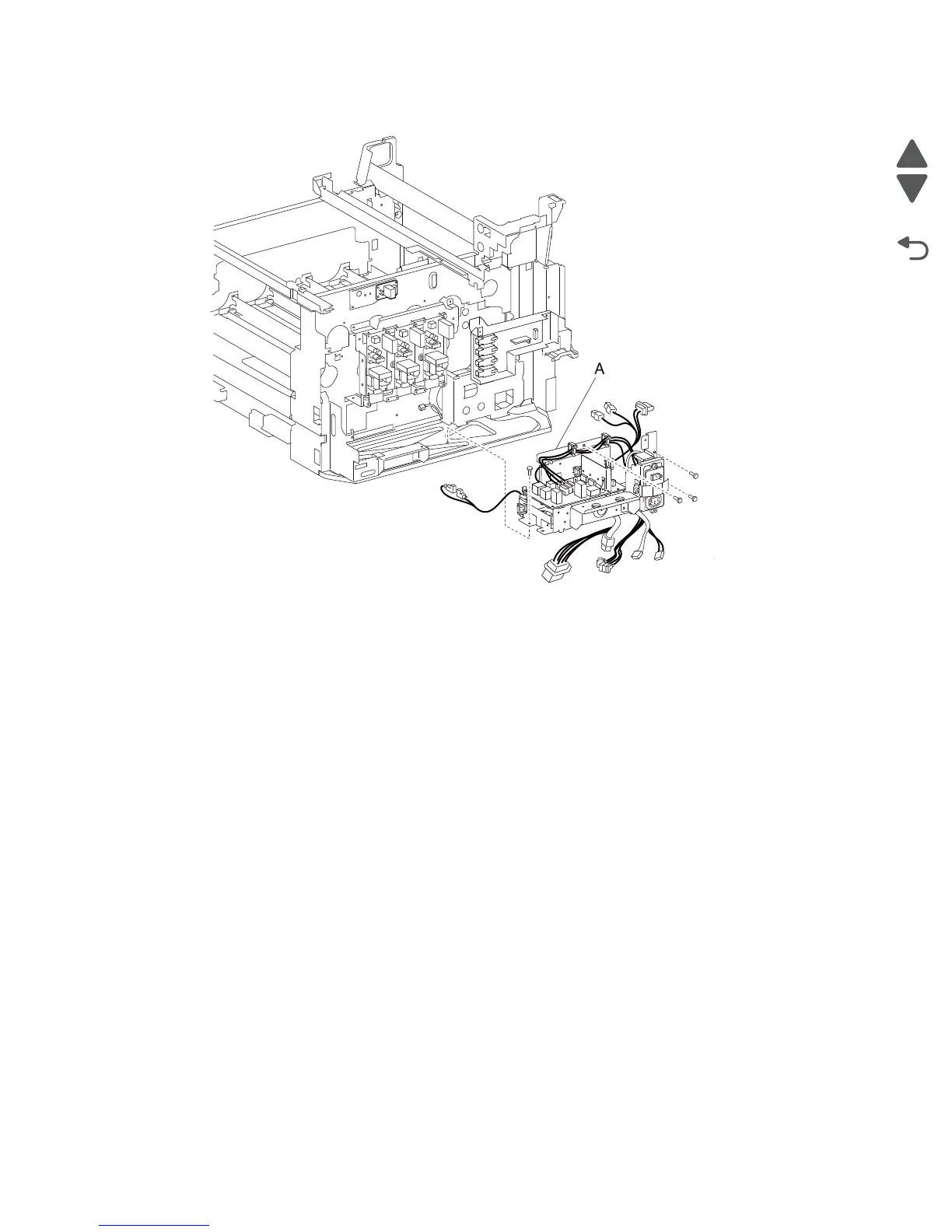

12. Remove the AC drive card bracket assembly (A).
Noise filter assembly removal
1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly
removal” on page 4-111.
3. Remove the developer / transfer roll HVPS card assembly. See “Developer / transfer roll HVPS card
assembly removal” on page 4-112.
4. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.
5. Remove the 24V LVPS card bracket assembly. See “24V LVPS card bracket assembly removal” on
page 4-95.
6. Remove the CMYK transfer HVPS card assembly. See “CMYK transfer HVPS card assembly removal”
on page 4-103.
7. Remove the AC drive card assembly. See “AC drive card bracket assembly removal” on page 4-109.
8. Disconnect the heavy gauge connector from the circuit breaker.
9. Remove the screw securing the noise filter assembly (A) to the machine.
10. Release the two plastic retainers with needle nose pliers securing the noise filter assembly (A) to the
machine.
To Next Page
