Media transport

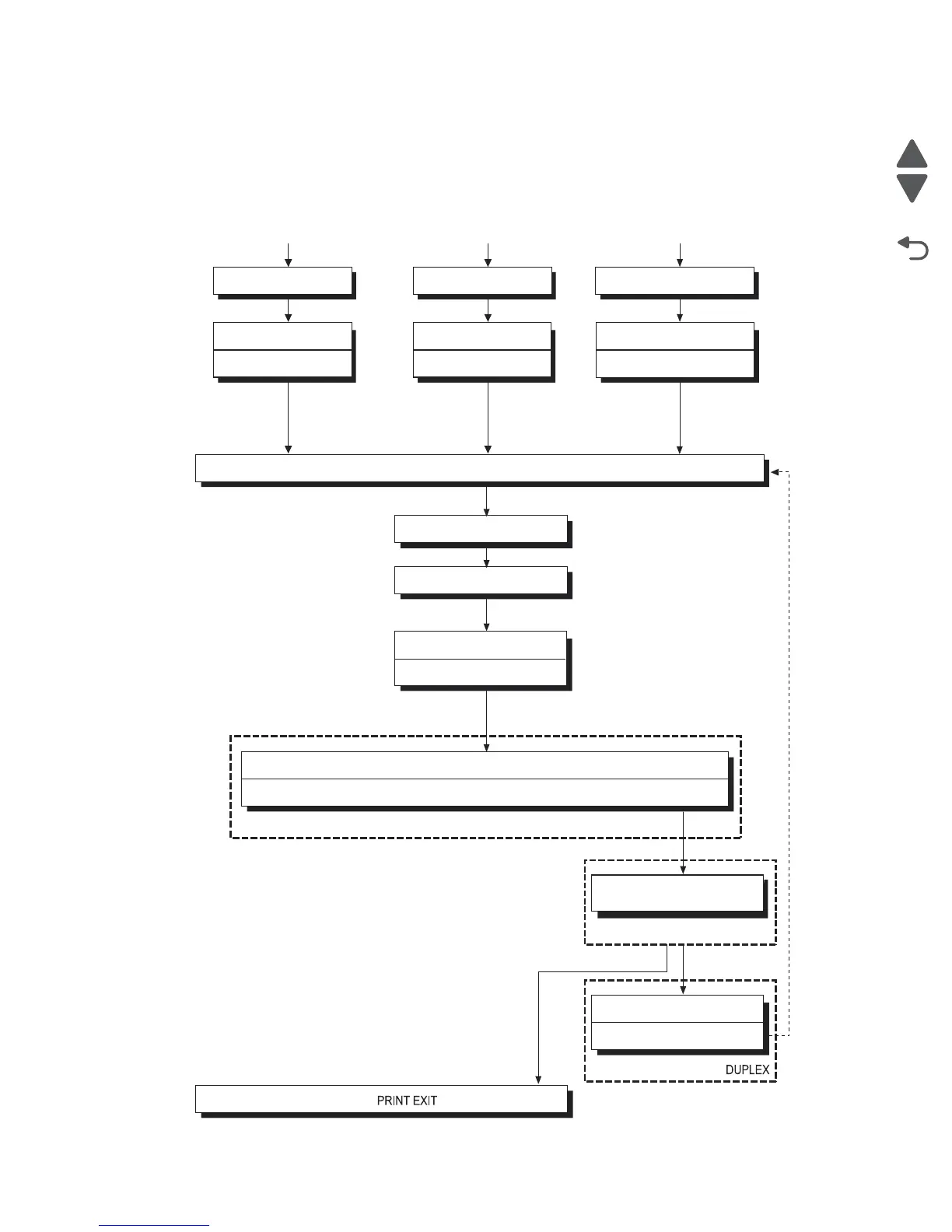

Media transport path
Media is supplied from tray 3 or tray 4, and is transported to the printer along the media transport path shown
below.
Pick roll Pick roll
Separation roll Separation roll
Feed roll
Transfer belt
2nd transfer roll assembly
Heat roll
Pressure roll
Fuser unit ASM
Standard media
exit roll assembly
Duplex media transport roll ASM
Duplex media Center transport
roll ASM
Tray 3
Tray 4
Feed roll
Tray module media Transport roll ASM
Media transport roll ASM
Registration roll ASM
Standard media exit
Pick roll
Separation roll
Feed roll
Tray 2
