4-156 Service Manual
7510
Go Back
Previous
Next

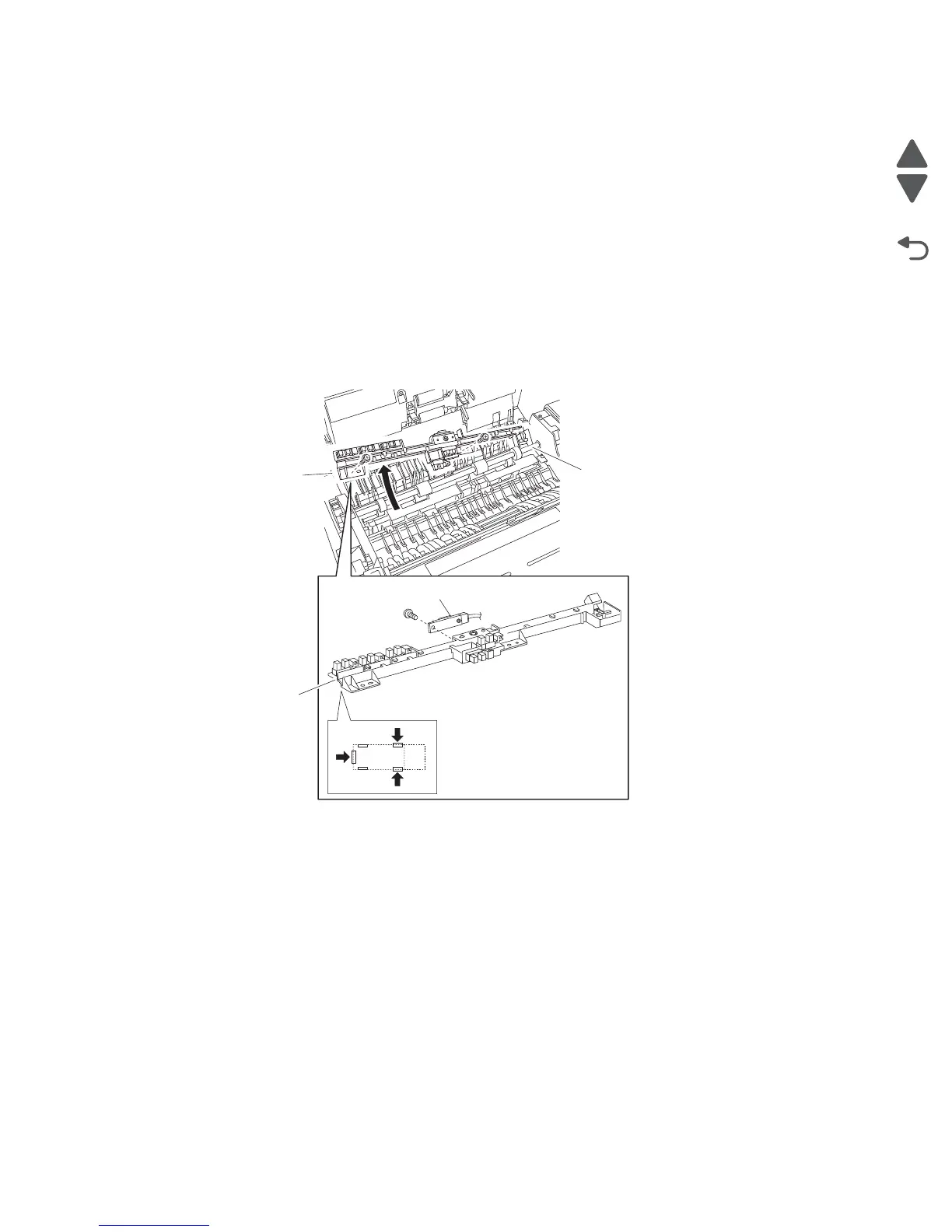

Sensor (ADF registration) removal
1. Open the ADF left cover assembly.
2. Lift the separation roll guide assembly to its uppermost position.
3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on
page 4-159.
4. Remove the two screws securing the sensor mount (A) to the ADF.
5. Slide the sensor mount (A) from the underside of the ADF transport roll (B), and move it to the position in
which the required sensor is easily removed.
6. Remove the screw securing the ADF registration sensor.
7. Disconnect the connector from the sensor (ADF registration).
8. Remove the sensor (ADF registration) (C).
The APS, pre-registration, and inverter sensors are removed in the same manner. Release the hook, disconnect
the connector, and remove the sensor.
