Repair information 4-255
7510

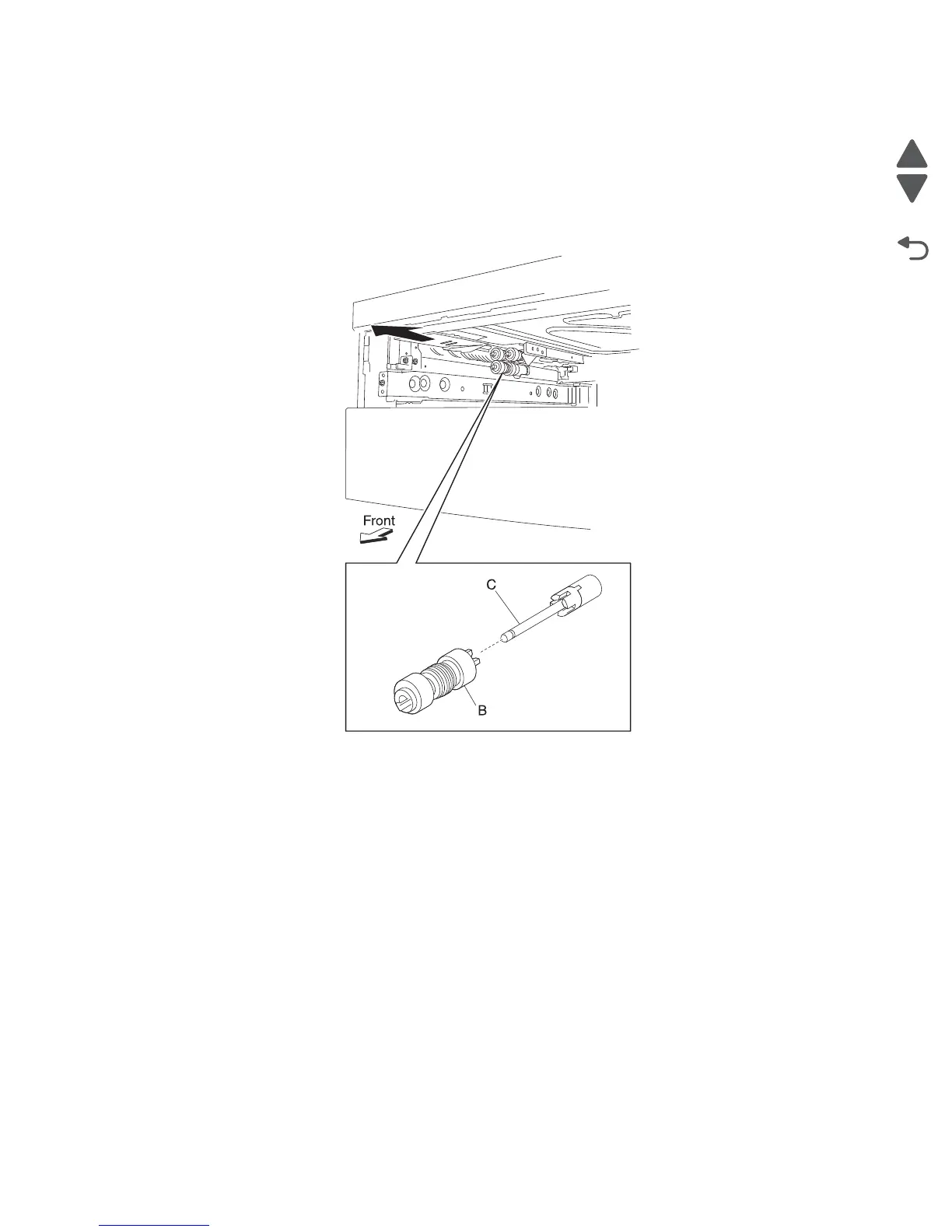

1X 500-sheet drawer (1TM)—separation roll removal
1. Remove the media tray assembly.
2. Move the feed unit front guide (A) toward the front in the direction of the arrow.
3. Release the hook securing the separation roll (B) to the shaft (C).
4. Remove the separation roll (B).
Note: Do not touch the rubber surface of the feed roll (B).
Replacement note: Before re-installing, do not touch the rubber surface of the separation roll (B).
