Rear left upper cover removal
1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
Warning: Ensure that the rear left middle cover is removed before removing the rear left upper cover, or
damage will occur.
2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.

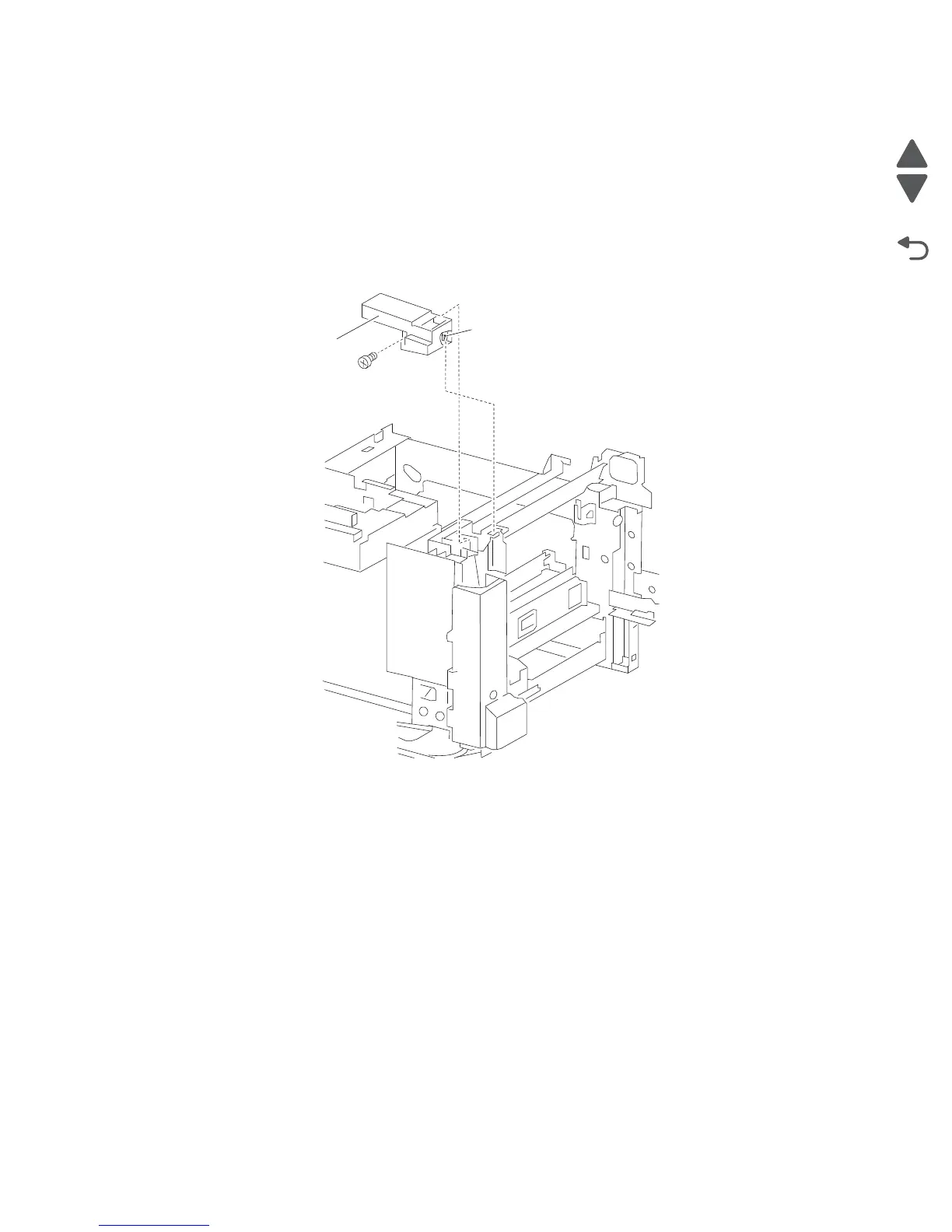

3. Remove one screw securing the rear left upper cover (A) to the machine.
4. Release the hook securing the rear left upper cover (A) to the machine.
5. Remove the rear left upper cover (A).
A
Hook
