1-28 Service Manual
7510
Go Back
Previous
Next

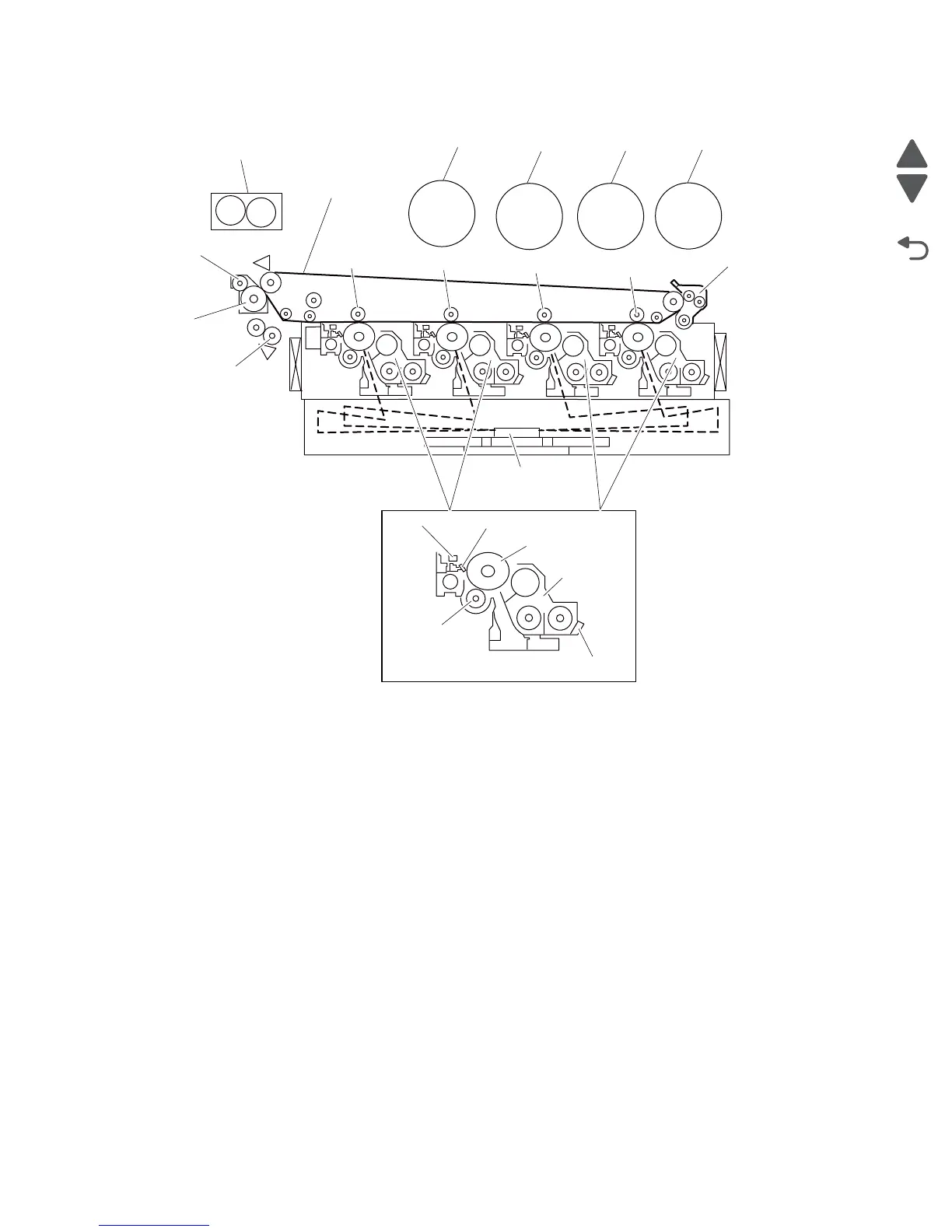

Xerographic process during a print cycle
K
C
M
Y
K toner
C toner M toner
Y toner
2nd transfer
roll assembly
Printhead
Transfer belt
Fuser
Cleaning roll
Transfer belt
cleaning
assembly
Cleaning blade
Photo conductor drum
Charge roll
Sensor (ATC)
Erase Lamp
Developer
unit
K transfer roll
C transfer roll
M transfer roll
Y transfer roll
Registration roll
