1X 500-sheet drawer (1TM)—right cover removal

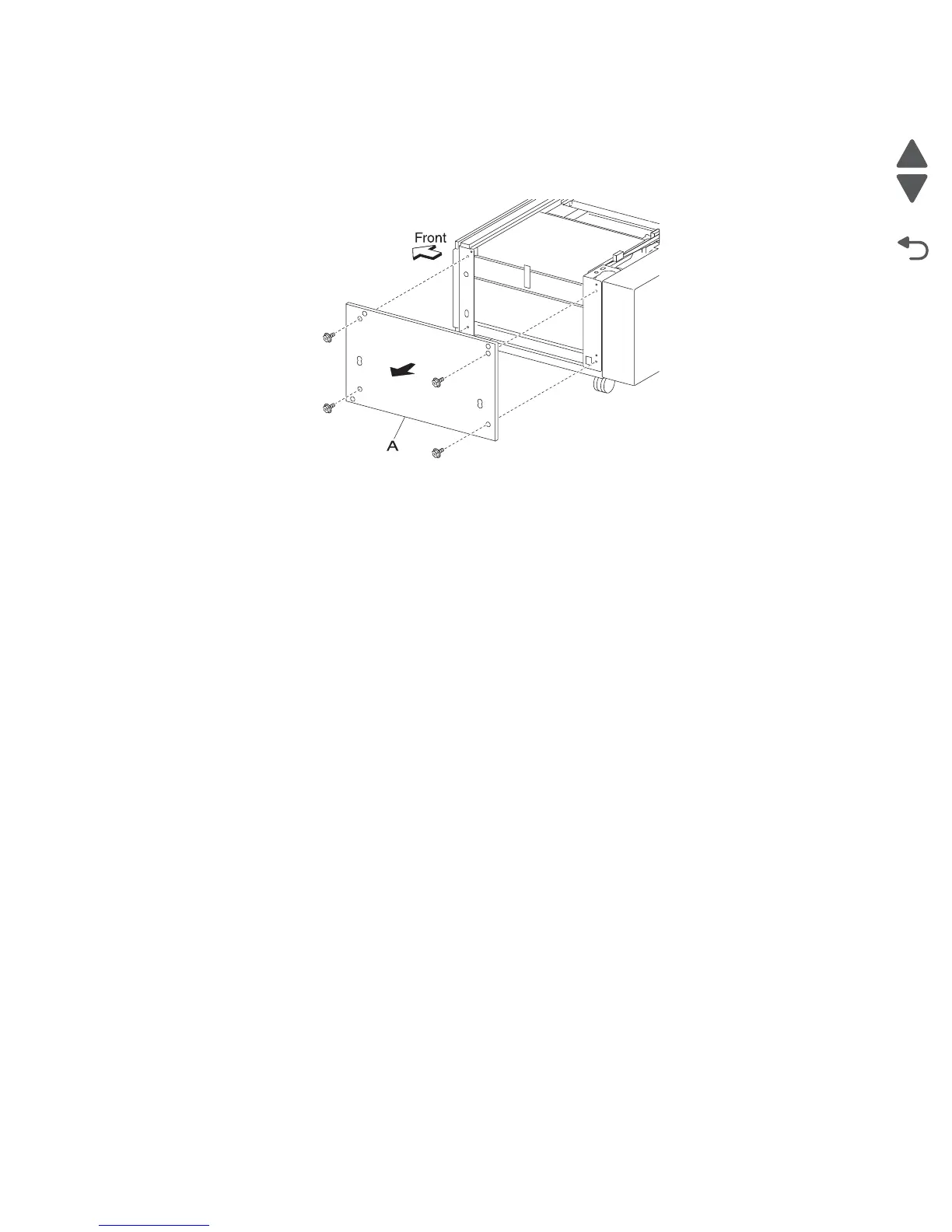

1. Remove the four screws securing the right cover (A).
2. Remove the right cover (A) by lifting up and out in the direction of the arrow.
