General information 1-31
7510

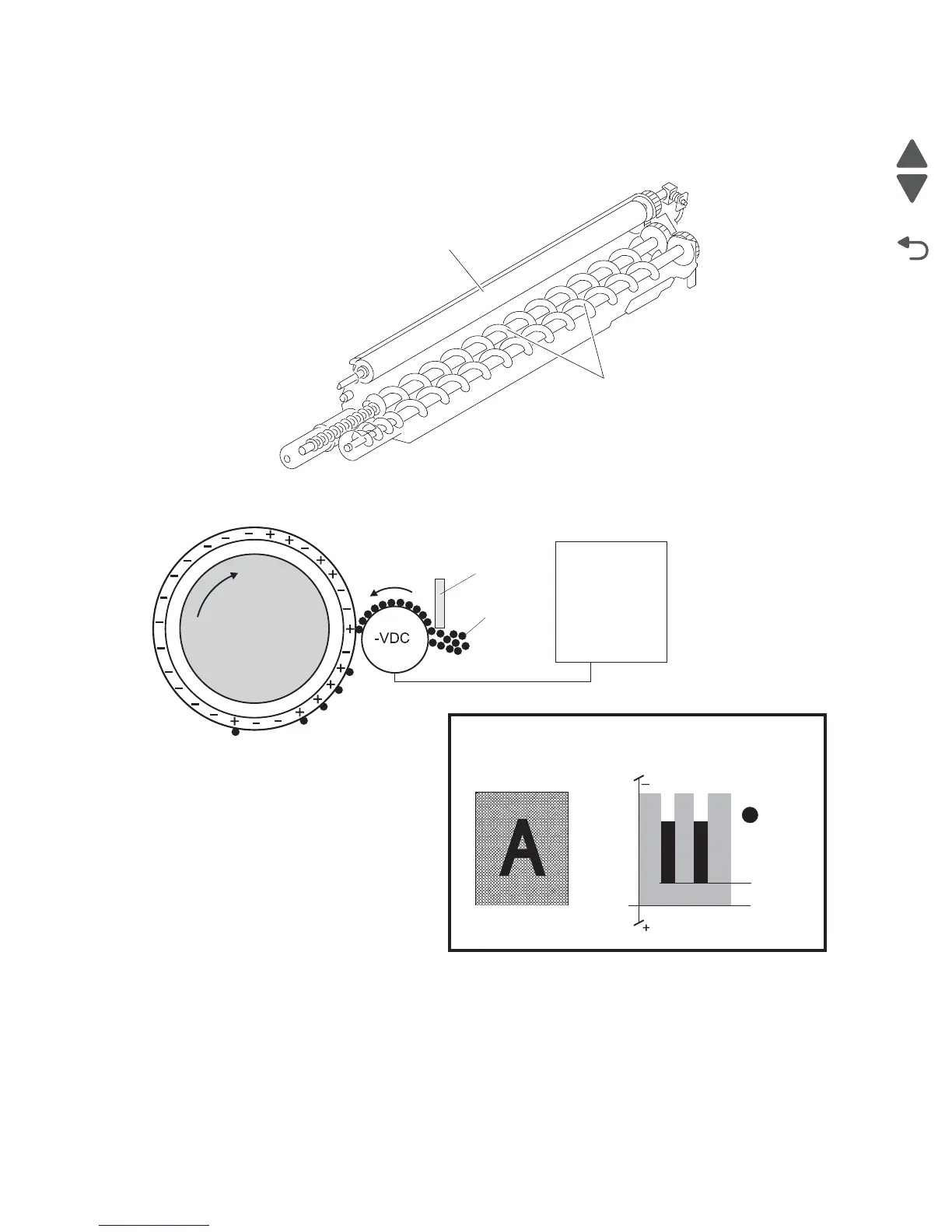

The toner adhering to the Magnet Roll is always in contact with the drum surface. When a less negative point on
the drum (a discharged area) comes in contact with the more negative charged toner on the Magnet Roll, toner
transfers from the Magnet Roll to that point on the drum. There is now a visible toner image on the drum surface.
The image is called a developed image.
Transfer
As the paper travels between the 2nd transfer Roll and the transfer belt surface, the Transfer Roll applies a
positive charge to the back of the printing paper. This positive charge transfers the negative charged toner
image from the transfer belt to the top surface of the paper. The toner image is now on the paper and the paper
Magnetic
Roll
Metering
Blade
Toner
HVPS
DRUM
-VDC
Drum Surface
Voltage
Drum Surface
Toner at
-VDC Developer
Bias value
Discharge
Level
0V
Visible Developed Image
