Repair information 4-201
7510
Go Back
Previous
Next
2000-sheet dual input (TTM)—feed roll one-way clutch removal
1. Remove the media tray assembly.
2. Remove the feed roll. See “2000-sheet dual input (TTM)—feed roll removal” on page 4-200.

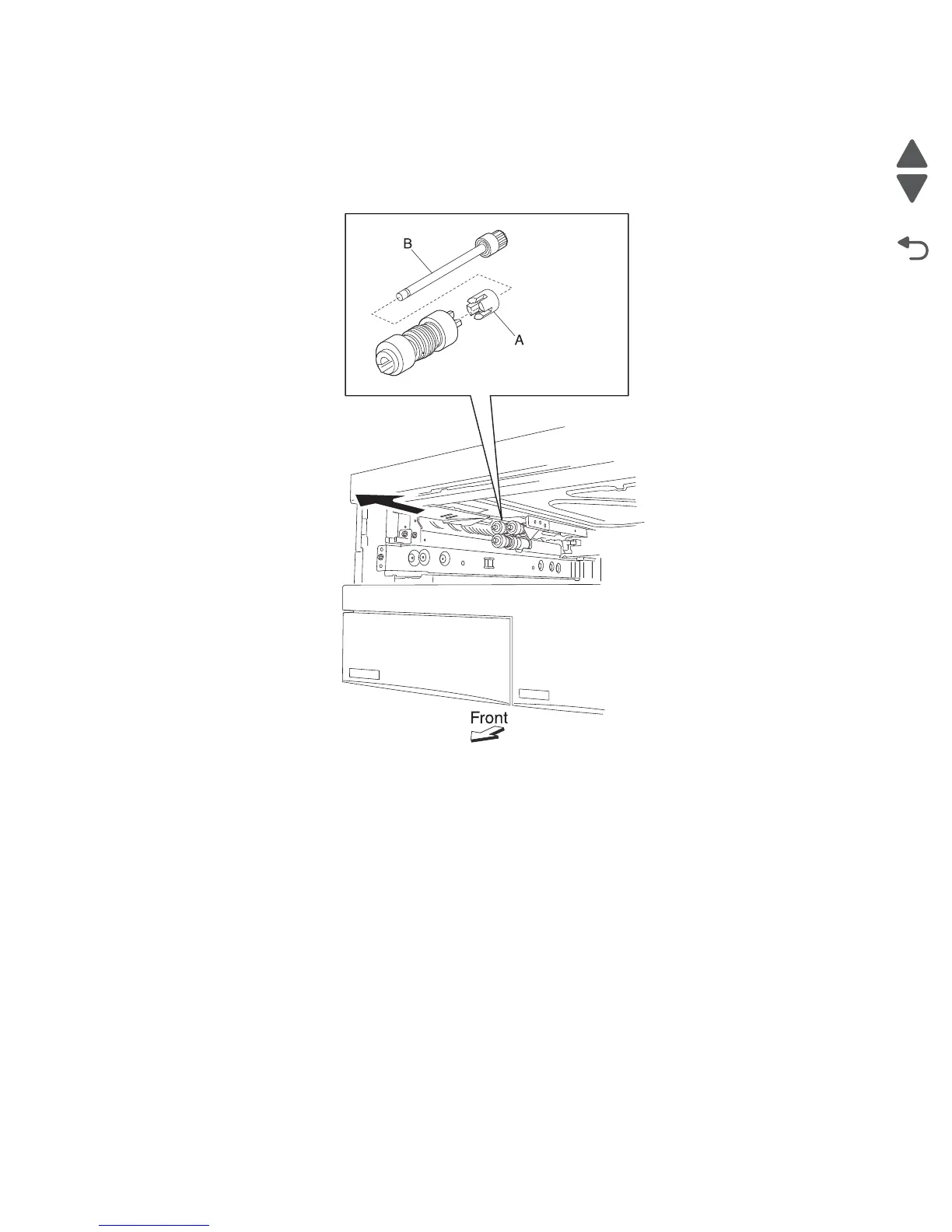

3. Remove the feed roll one-way clutch (A) from the shaft (B).
