3X 500-sheet drawer (3TM)—separation roll removal
1. Remove the media tray assembly.

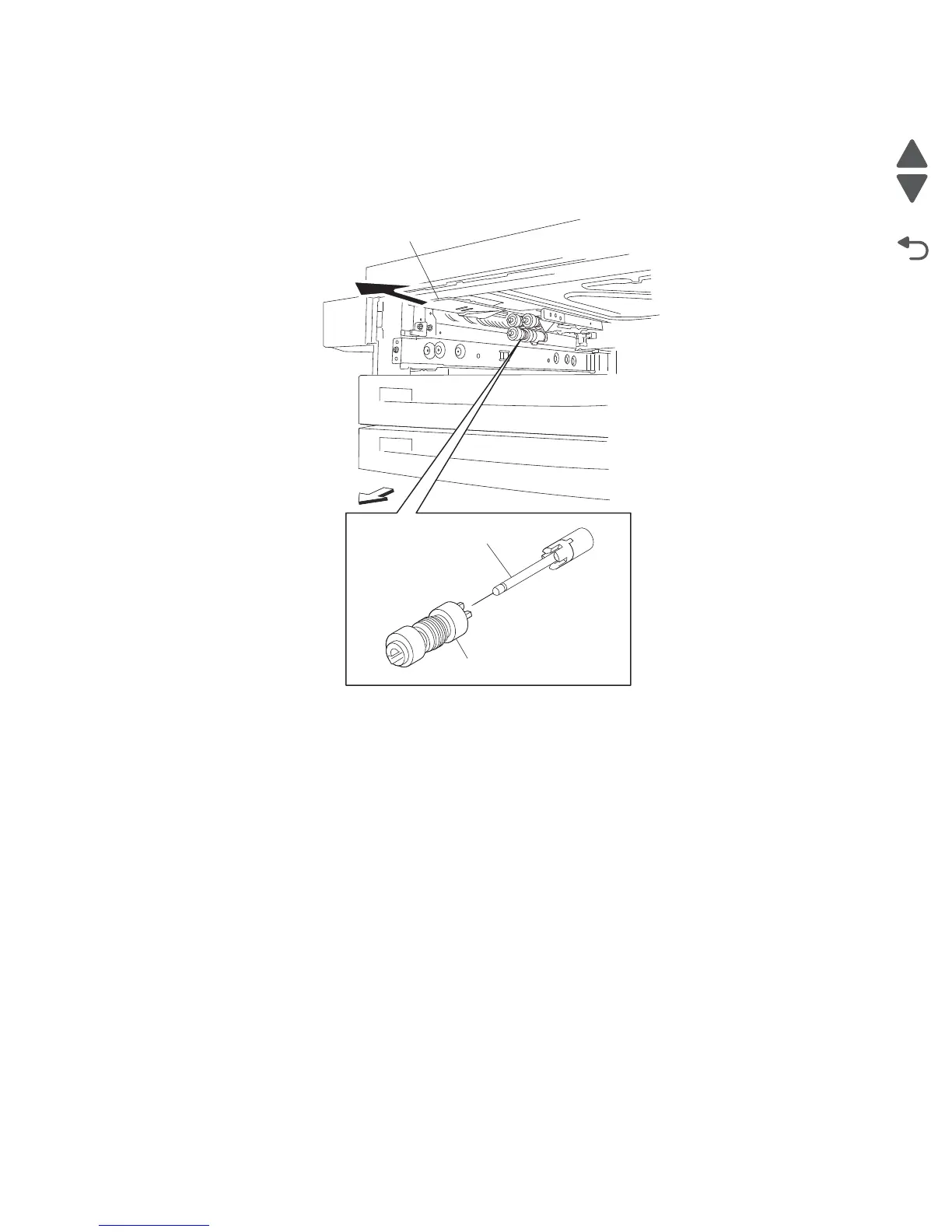

2. Move the feed unit front guide (A) toward the front in the direction of the arrow.
3. Release the hook securing the separation roll (B) to the shaft (C).
A
C
B
Front
