4-32 Service Manual
7510

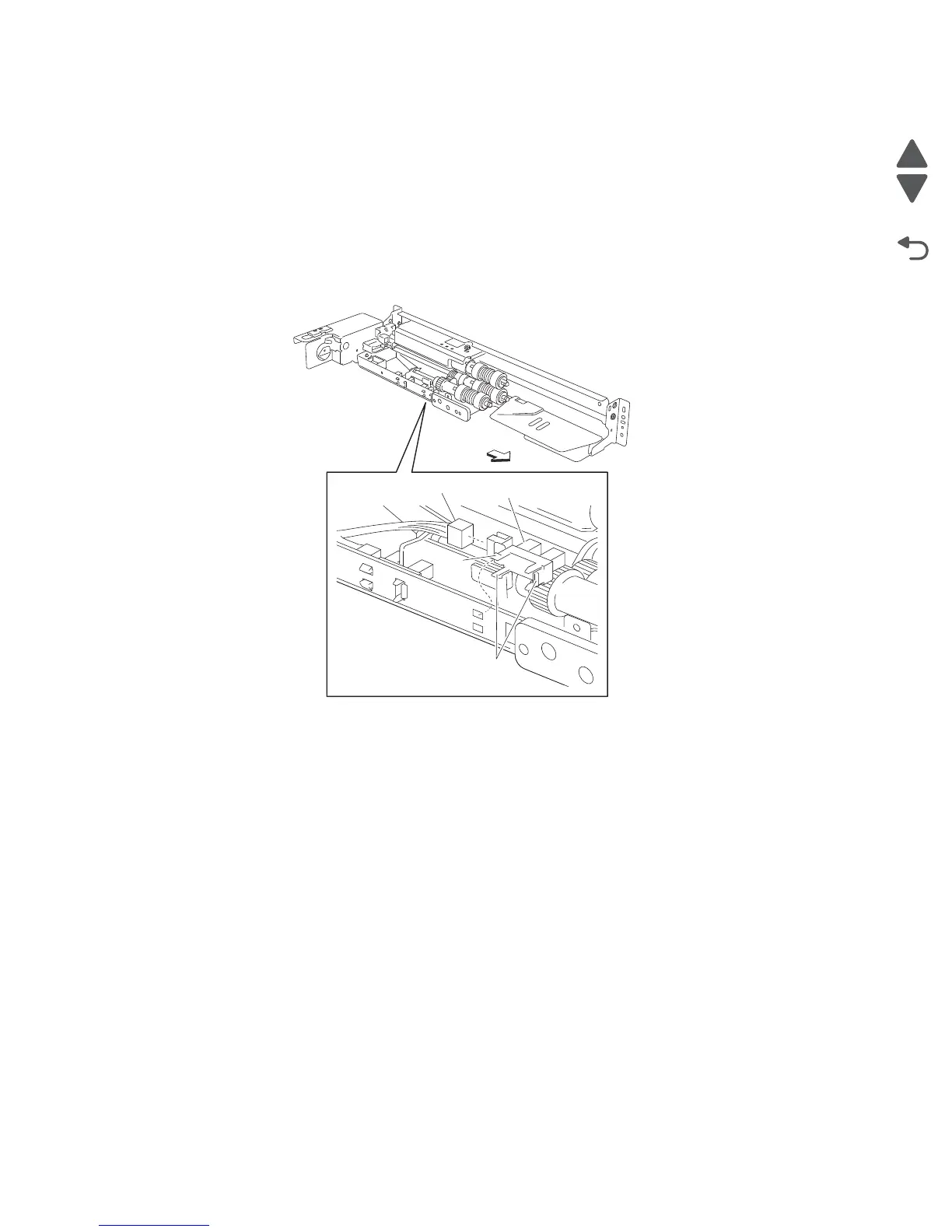

Sensor (media out) removal
1. Remove the printer left lower door assembly. See “Printer left lower door assembly removal” on
page 4-8.
2. Remove the media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-31.
3. Remove the media feed unit assembly. See “Media feed lift motor removal” on page 4-120.
4. Remove the media out actuator. See “Media out actuator removal” on page 4-32.
5. Disconnect the connector from the sensor (media out) (A).
6. Release the hooks securing the sensor (media out) (A) to the media feed unit.
7. Remove the sensor (media out) (A).
Media out actuator removal
1. Remove the media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-31.
2. Remove the media feed unit assembly. See “Media feed lift motor removal” on page 4-120.
3. Release the two bosses on the media out actuator (A) from the media feed unit assembly.
Front
Harness
A
Hooks
Lower view
Hook
To Next Page
