3X 500-sheet drawer (3TM) removals
3X 500-sheet drawer (3TM)
—top cover removal

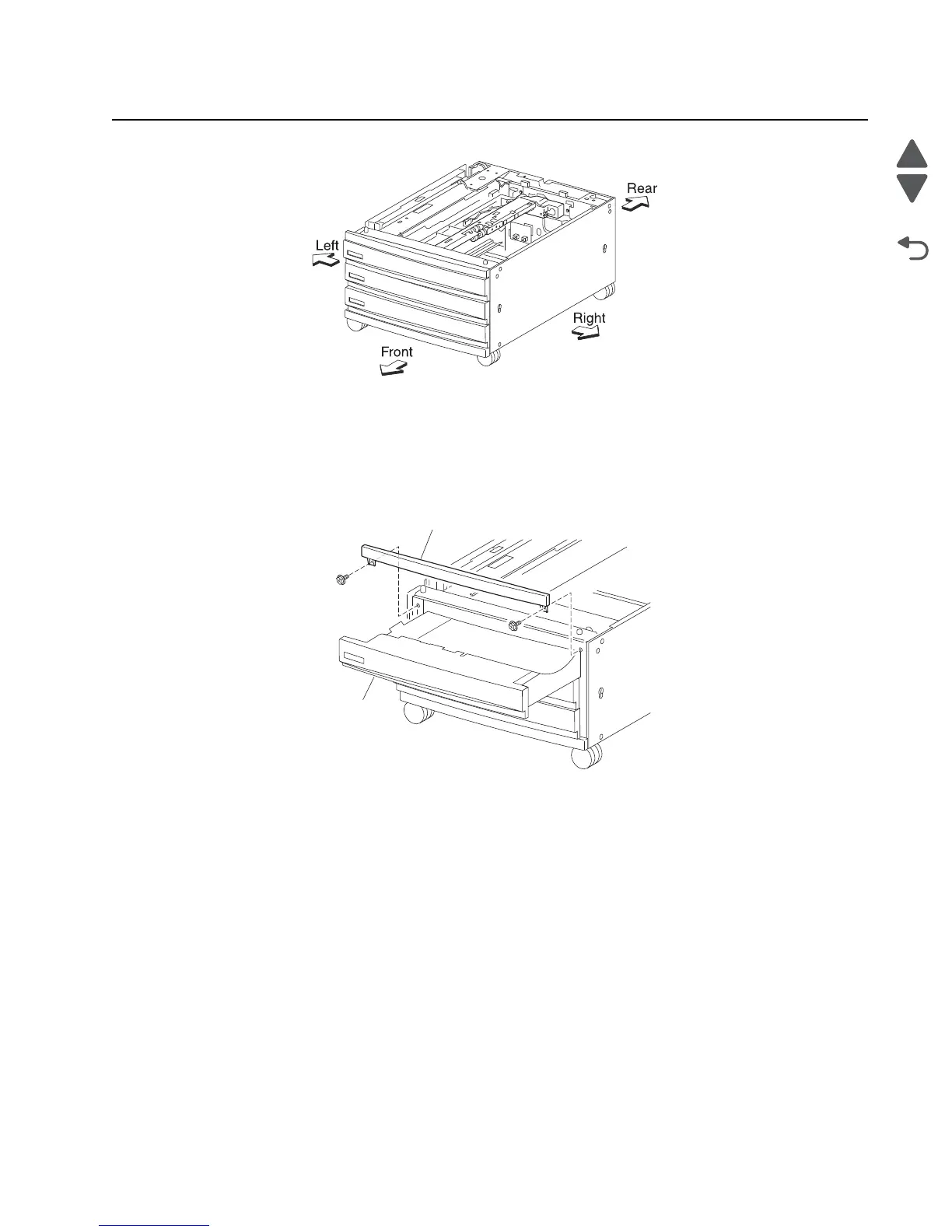

1. Pull out tray 2 assembly (A).
2. Remove the two screws securing the top cover (B).
3. Remove the top cover (B).
C
A
B
