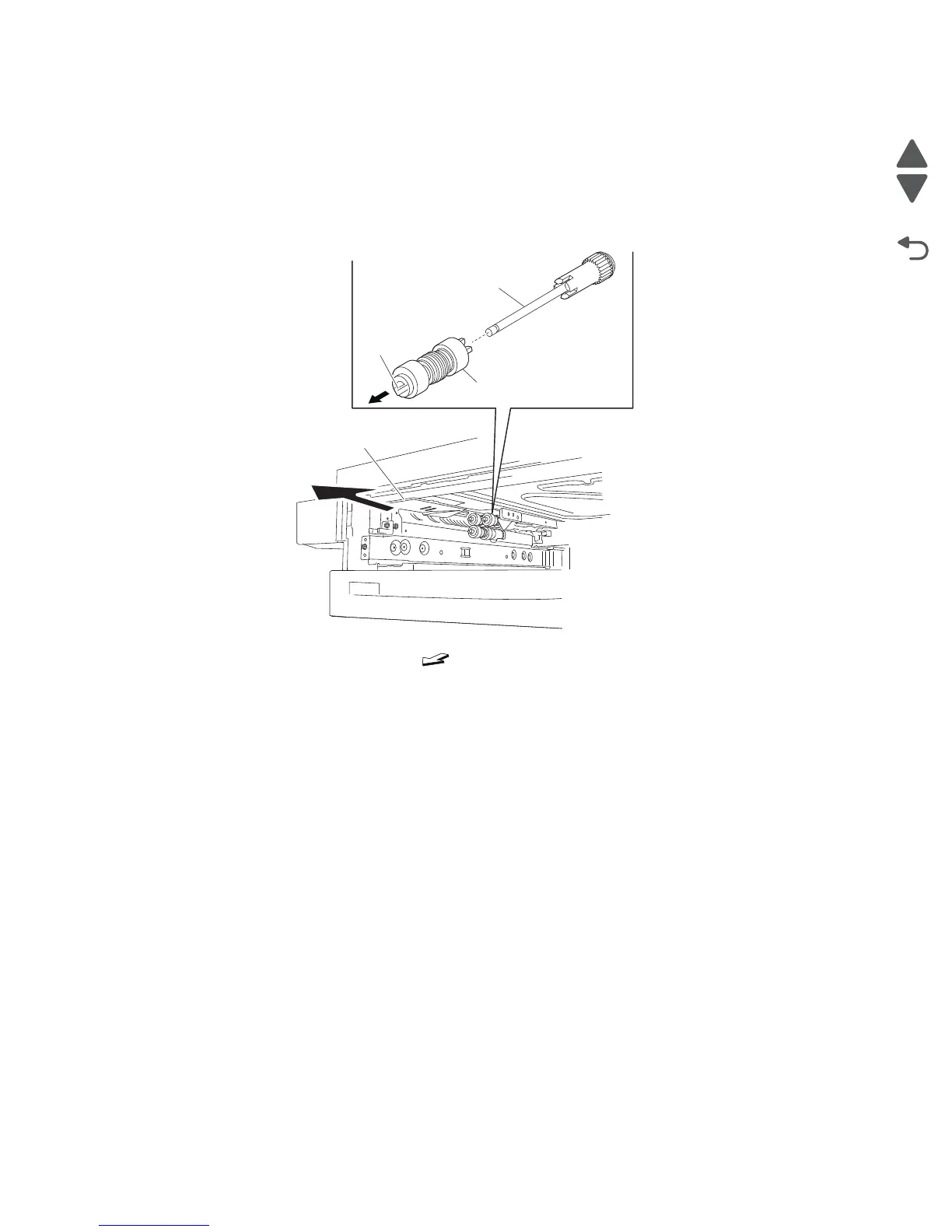

Pick roll removal
1. Remove the media tray.
2. Move the media feed unit front guide (A) in the direction of the arrow.
3. Release the hook securing the pick roll (B) to the shaft (C).
4. Remove the pick roll (B).
Note: Do not touch the rubber surface of the feed roll (B).
Replacement note: Before reinstalling, do not touch the rubber surface of the pick roll (B).
C
B
Hook
A
Front
