3X 500-sheet drawer (3TM)—switch (media size) removal
Note: This removal procedure may be applied to media tray 2, 3 and media tray 4 assemblies.
1. Remove the media tray 2 assembly.
2. Remove the media tray 3 assembly.
3. Remove the media tray 4 assembly.

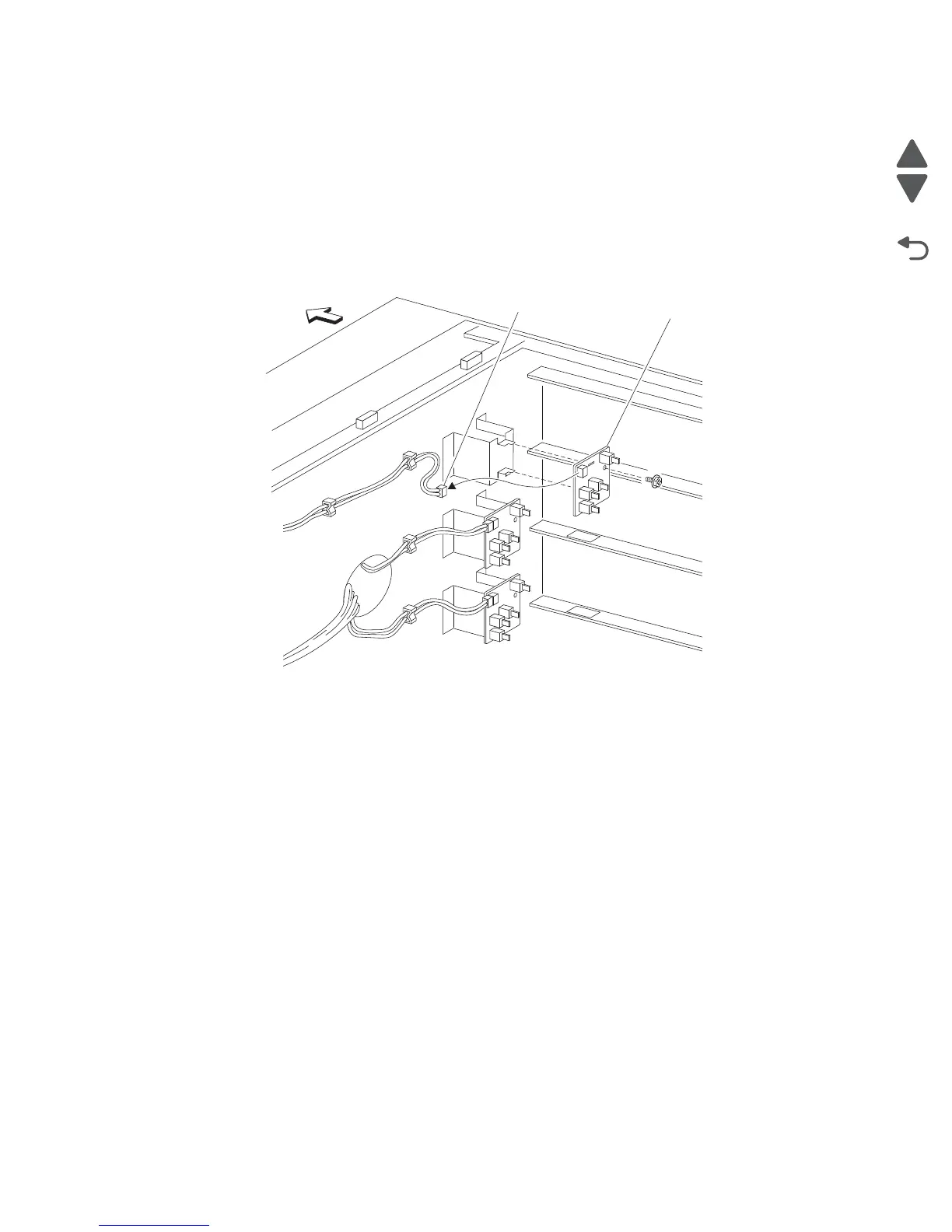

4. Disconnect the connector from the appropriate switch (media size) (A).
5. Remove the screw securing the appropriate switch (media size) (A).
6. Remove the appropriate switch (media size) (A).
Rear
A
Connector
