Repair information 4-195
7510
Go Back
Previous
Next
2000-sheet dual input (TTM)—one-way clutch / gear assembly removal
1. Remove the tray module left cover. See “2000-sheet dual input (TTM)— tray module left cover removal
on page 4-174.
2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)—TTM media tray 3
assembly removal” on page 4-178.
3. Remove the TTM media tray 4 assembly. See “2000-sheet dual input (TTM)—TTM media tray 4
assembly removal” on page 4-177.
4. Remove the tray 4 media transport assembly. See “2000-sheet dual input (TTM)—TTM tray 4 media
transport assembly removal” on page 4-182.
5. Remove the media feed unit assembly. See “2000-sheet dual input (TTM)—media feed unit assembly 2
removal” on page 4-190, “2000-sheet dual input (TTM)—media feed unit assembly removal (tray 3)”
on page 4-190, or “2000-sheet dual input (TTM)—media feed unit assembly removal (tray 4)” on
page 4-186.

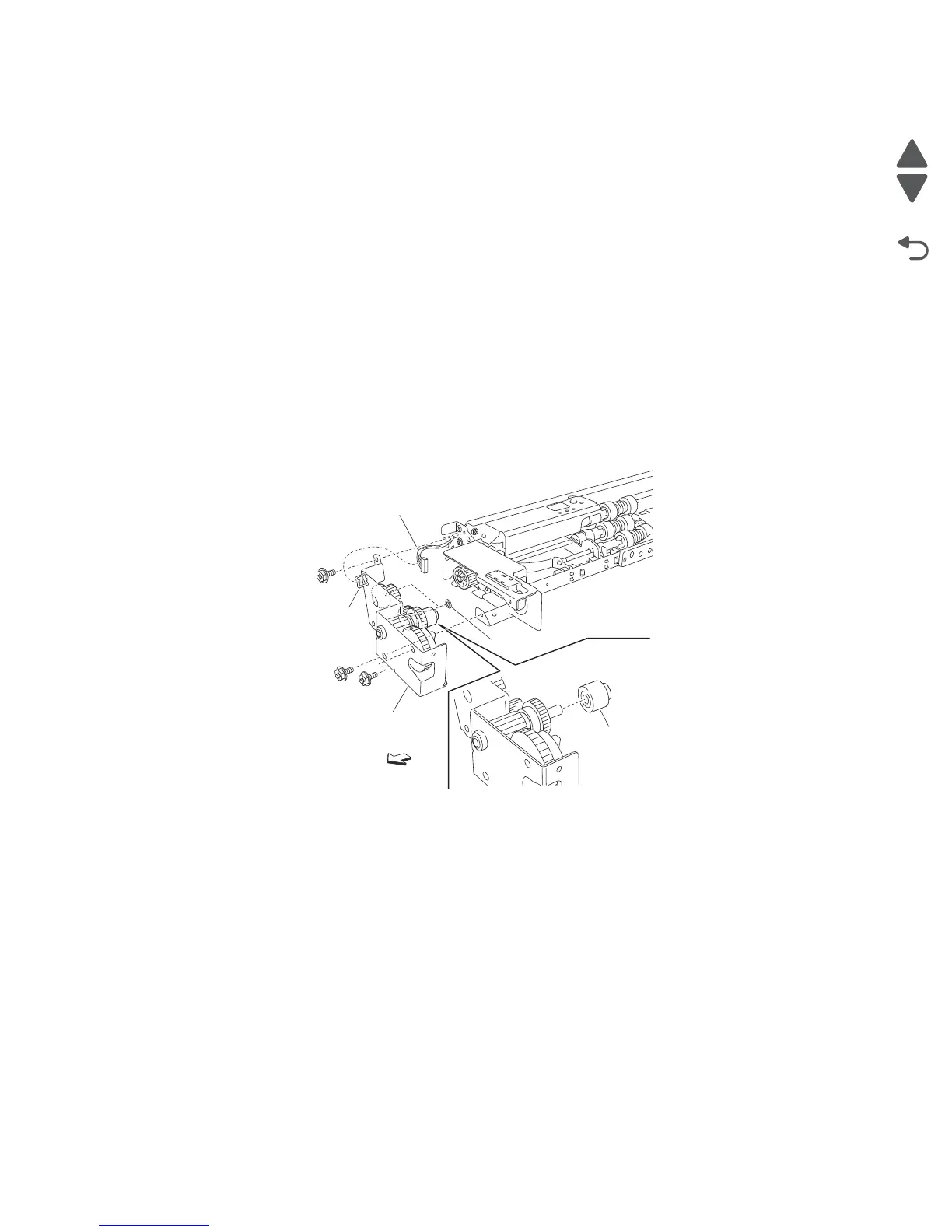

6. Remove the harness from the bracket (A).
7. Remove the three screws securing the bracket (A) to the media feed unit assembly.
8. Remove the bracket (A).
Note: The gears may become detached from the bracket (A).
9. Remove the tray lift one-way clutch (B).
Harness
Washer
Clamp
A
Rear
B
