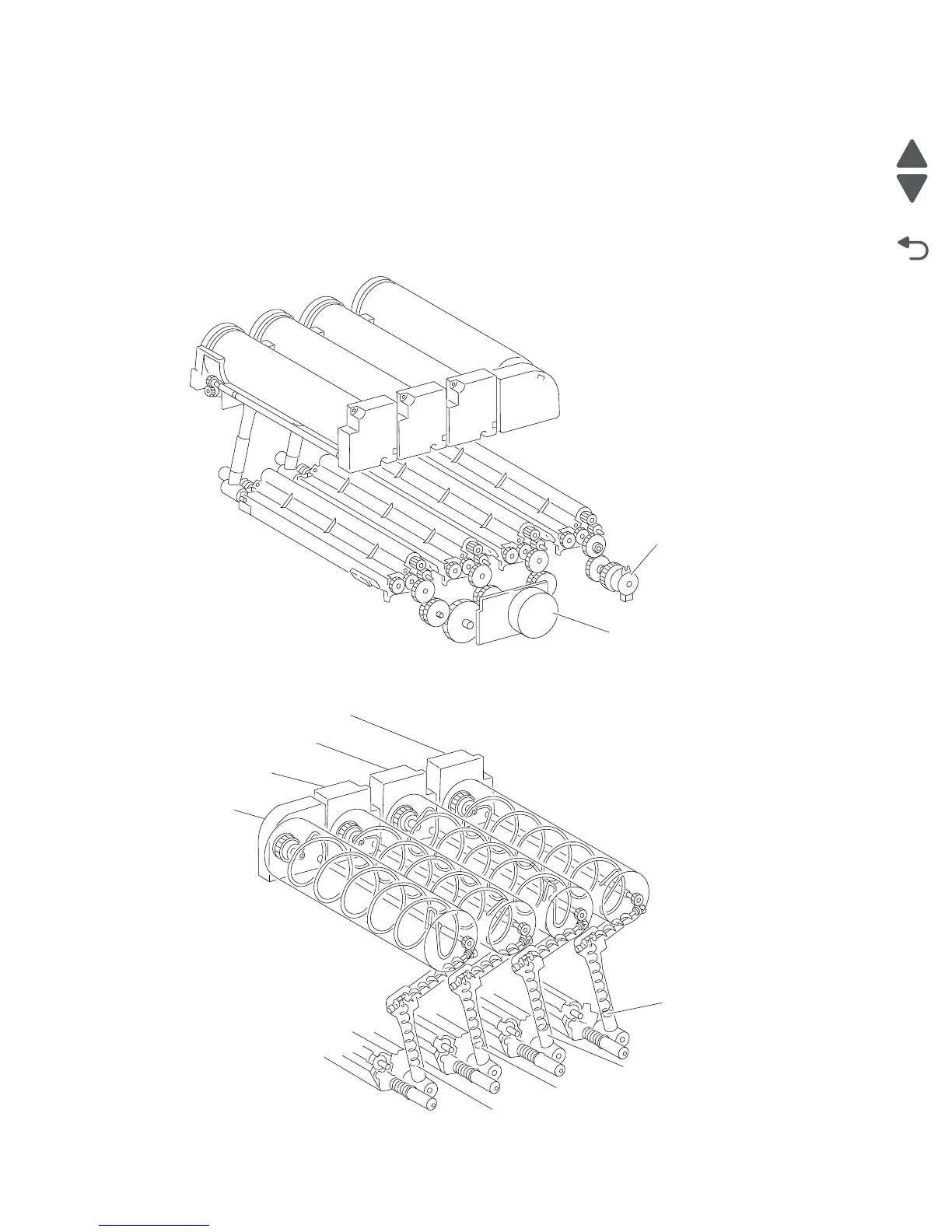

CMY developer drive motor assembly
The CMY developer drive motor assembly uses a DC brushless motor to drive the three color developer unit
assemblies.
K developer clutch
This clutch is used to engage the K developer unit assembly and is driven by the K-developer transfer drive
motor assembly.
CMYK toner add motor assembly
K developer
clutch
CMY developer drive
motor assembly
Y toner add motor
Y toner add assembly
M toner add motor
M toner add assembly
C toner add motor
C toner add assembly
K toner add motor
K toner add assembly
