2000-sheet dual input (TTM)—sensor (tray 4 feed-out) removal
1. Remove the media tray 2 assembly.
2. Remove the tray module left cover. See “2000-sheet dual input (TTM)— tray module left cover removal”
on page 4-174.
3. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)—TTM media tray 3
assembly removal” on page 4-178.
4. Remove the TTM media tray 4 assembly. See “2000-sheet dual input (TTM)—TTM media tray 4
assembly removal” on page 4-177.

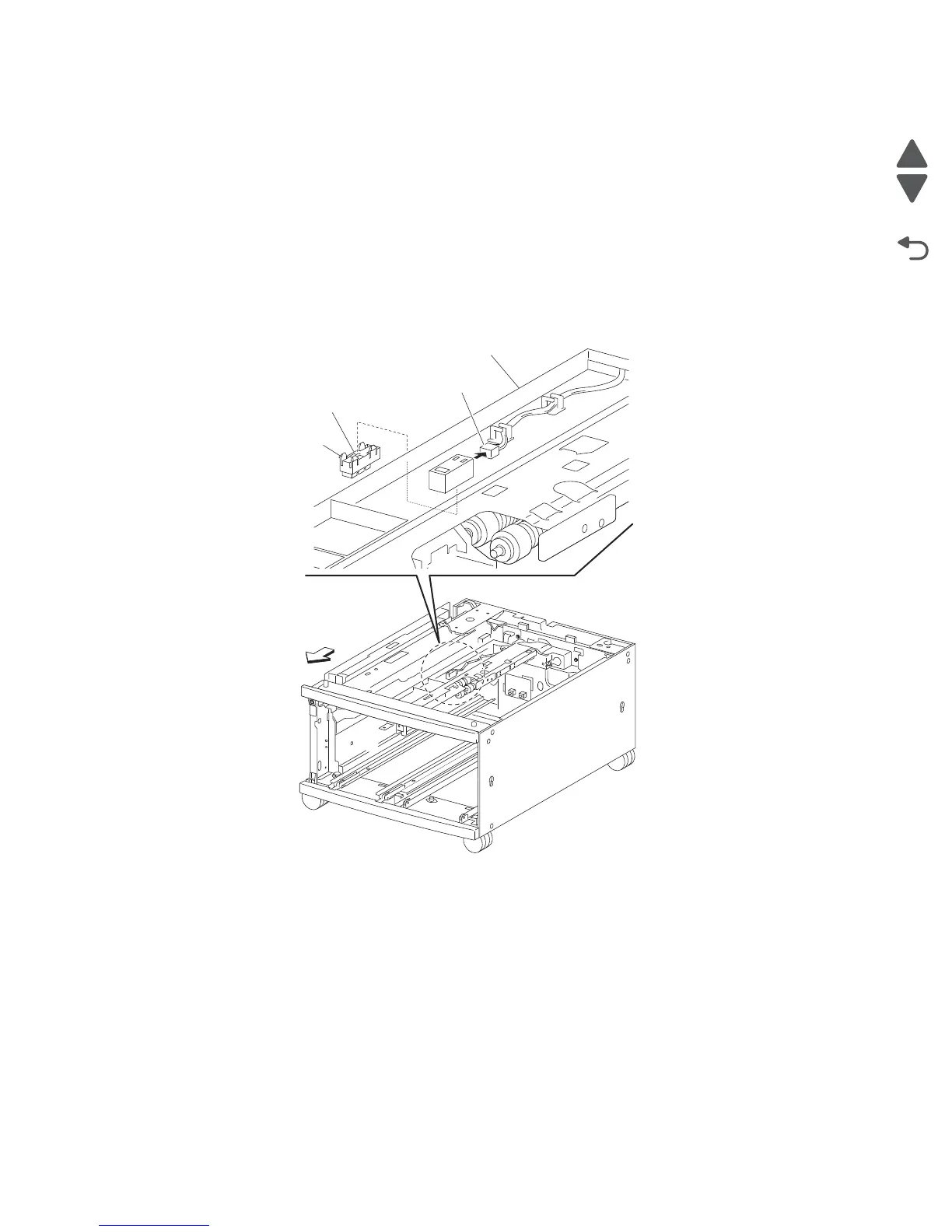

5. Disconnect the connector from the sensor (tray 4 feed-out) (A).
6. Release the hooks securing the sensor (tray 4 feed-out) (A) to the upper guide (B).
7. Remove the sensor (tray 4 feed-out) (A).
Hook
A
Connector
B
Front
