2000-sheet dual input (TTM)—tray lift coupling assembly removal
Note: This procedure can be applied to both the tray 3 and the tray 4 media assemblies.
1. Remove the rear cover. See “2000-sheet dual input (TTM)—rear cover removal” on page 4-174.
2. Remove the tray 3 lift gear or the tray 3 lift gear assembly. See “2000-sheet dual input (TTM)—tray 3 lift
gear assembly removal” on page 4-209 or “2000-sheet dual input (TTM)—tray 4 lift gear assembly
removal” on page 4-209.

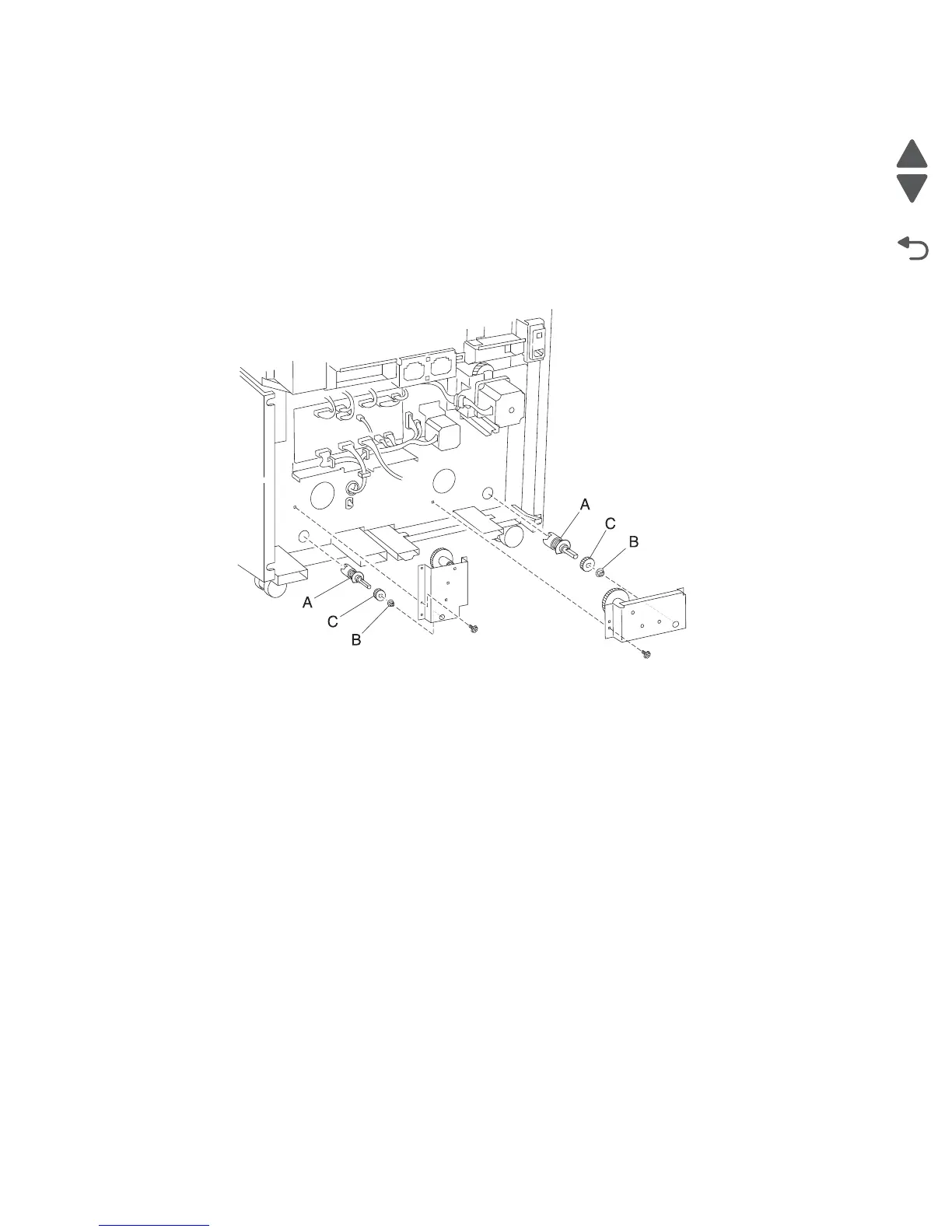

3. Remove the tray lift coupling assembly (A) from the machine.
4. Remove the bushing (B) from the tray lift coupling assembly (A).
5. Remove the gear (C) from the tray lift coupling assembly (A).
2000-sheet dual input (TTM)—tray module drive motor assembly removal
1. Remove the rear cover. See “2000-sheet dual input (TTM)—rear cover removal” on page 4-174.
2. Disconnect the connector from the tray module drive motor (A).
3. Remove the three screws securing the tray module drive motor (A) to the machine.
