Repair information 4-161
7510
3. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-138.
4. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-138.
5. Remove the ADF left cover media guide. See “ADF left cover media guide removal” on page 4-151.
6. Remove the left cover pinch roll assembly. See “Left cover pinch roll assembly removal” on page 4-141.
7. Remove the ADF left cover assembly. See “ADF left cover assembly removal” on page 4-139.
8. Remove the document tray assembly. See “Document tray assembly removal” on page 4-144.
9. Remove the ADF registration motor. See “ADF registration motor removal” on page 4-166.
10. Remove the ADF media feed assembly. See “ADF media feed assembly removal” on page 4-142.
11. Remove the ADF feed drive motor assembly. See “ADF feed drive motor assembly removal” on
page 4-141.
12. Lift the separation roll guide assembly to its uppermost position.
13. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on
page 4-159.

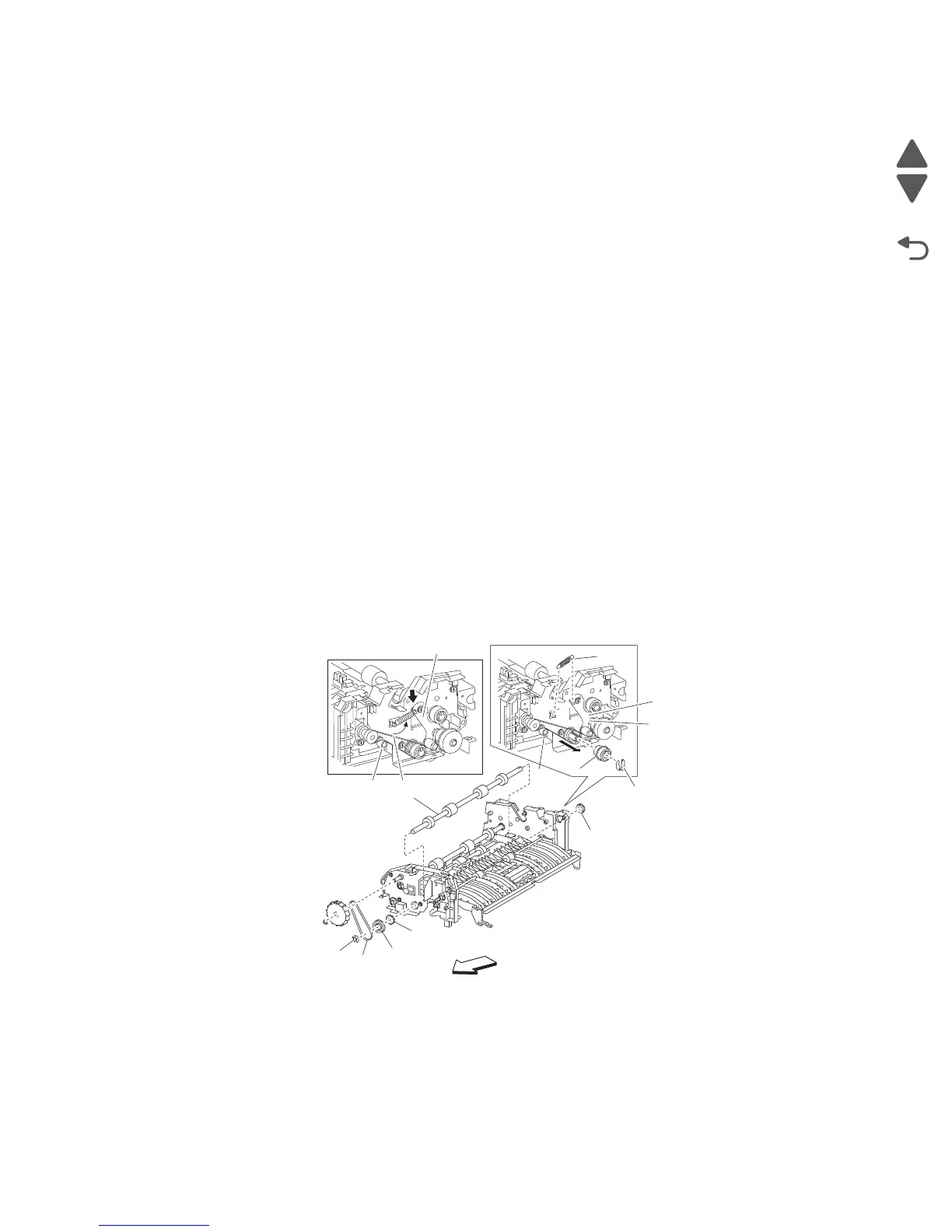

14. Loosen the screw securing the tension bracket (A) and loosen the registration secondary belt (B) tension.
15. Remove the tension spring (B).
16. Loosen the screw securing the small tension bracket (C).
17. Remove the exit roll drive belt (D).
18. Remove the registration secondary drive belt (E).
19. Remove the plastic clip securing the exit/feed-out roll drive pulley 25/28T (F).
20. Remove the exit/feed-out roll drive pulley 25/28T (F).
21. Remove the bearing 8 mm (G) securing the ADF feed-out roll assembly (H) to the rear of the feed assembly.
22. Remove the plastic clip securing the manual feed drive pulley (I).
23. Remove the manual feed drive pulley (I).
24. Remove the manual feed drive belt (J).
25. Remove the bearing 8 mm (K) securing the feed-out roll assembly to the front of the feed assembly.
26. Move the ADF feed-out roll assembly (H) rearward and upward.
27. Remove the ADF feed-out roll assembly (H).
Warning: Do not touch the rubber surface of the ADF exit roll assembly (G).
C
D
A
B
F
Plastic
clip
E
J
I
K
G
H
A
Front
Plastic
clip
C
To Next Page
