Repair information 4-247
7510
Go Back
Previous
Next

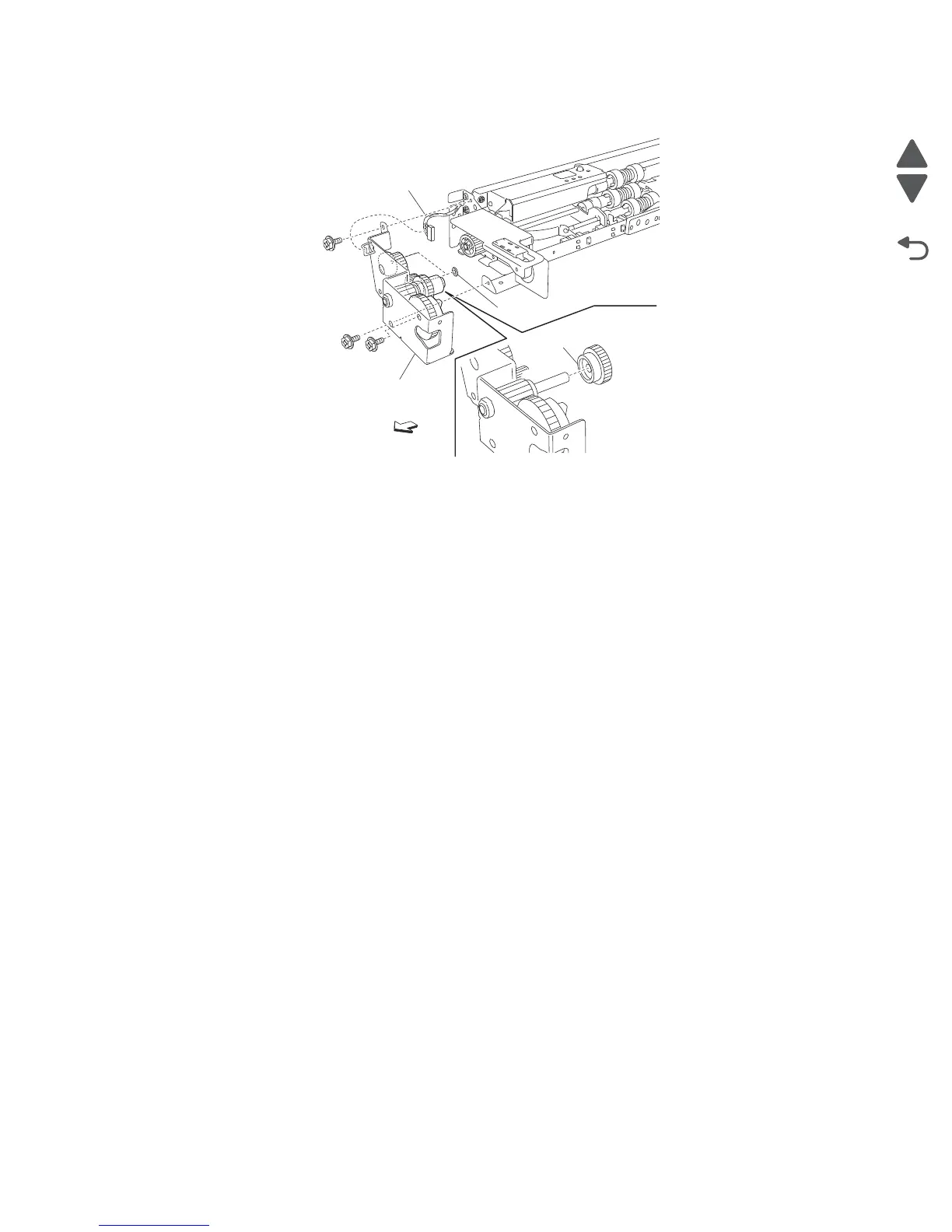

6. Remove the tray lift one-way gear 24 tooth (C).
Replacement note: Before re-installing, ensure all gears and washers are securely attached to the bracket
(A).
Harness
A
Rear
C
Washer
