Check the transfer belt drive motor assembly drive gear for
damage.
1. Remove the transfer belt unit assembly. Go to
“Transfer belt drive motor assembly removal” on
page 4-93.

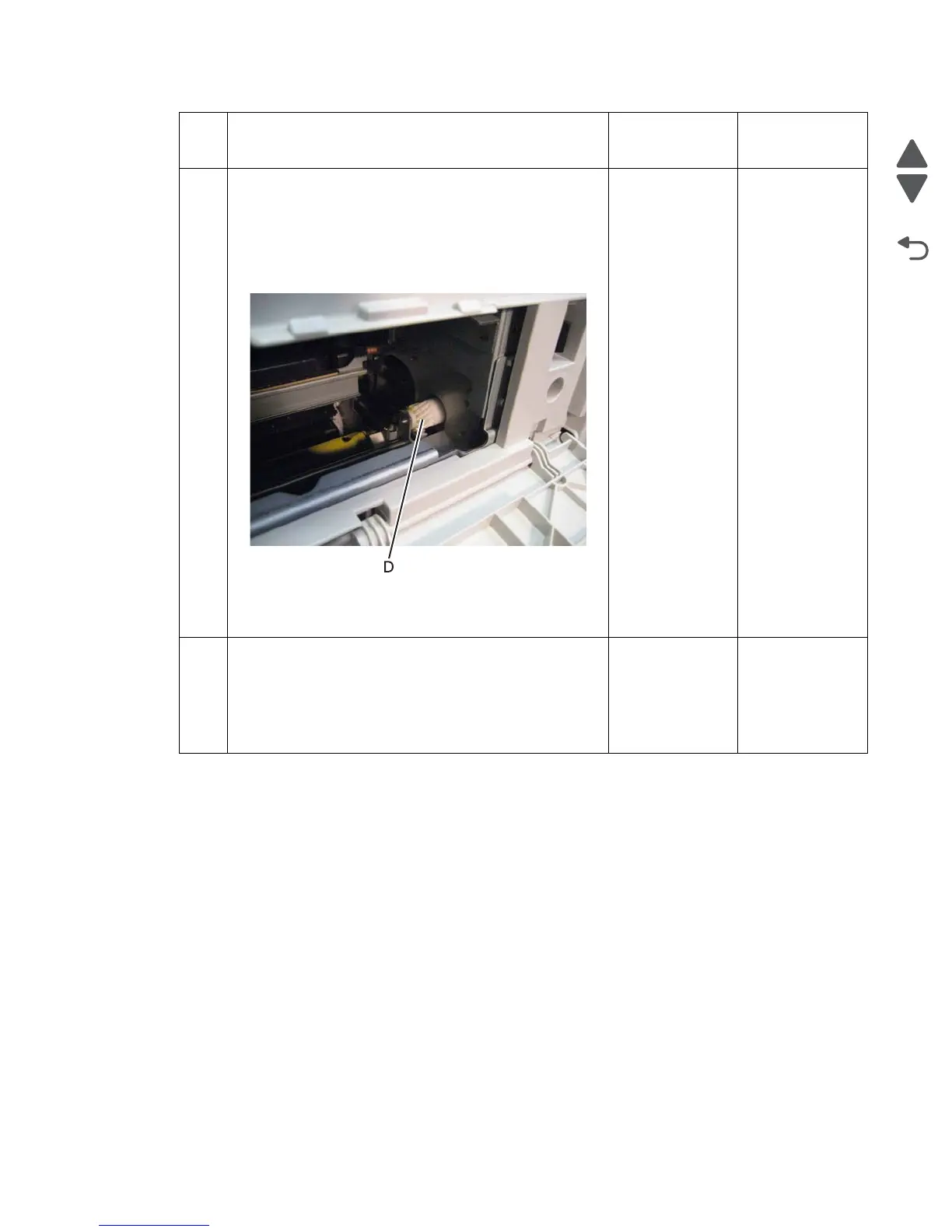

2. Inspect the transfer belt drive motor assembly drive gear
(D) for damage.
Is the transfer belt drive motor assembly drive gear
damaged?
Replace the
transfer belt drive
motor assembly.
Contact the next
level of support.
12
Check the transfer belt steering motor for proper
connection.
Is the above component properly connected.
Replace the
transfer belt
steering motor.
Go to “Transfer
belt steering
motor removal”
on page 4-75.
Replace the
connection.
Step Check Yes No
