Lexmark X945e MFP 7510 series User Manual

2-158 Service Manual
7510
Go Back
Previous
Next
5

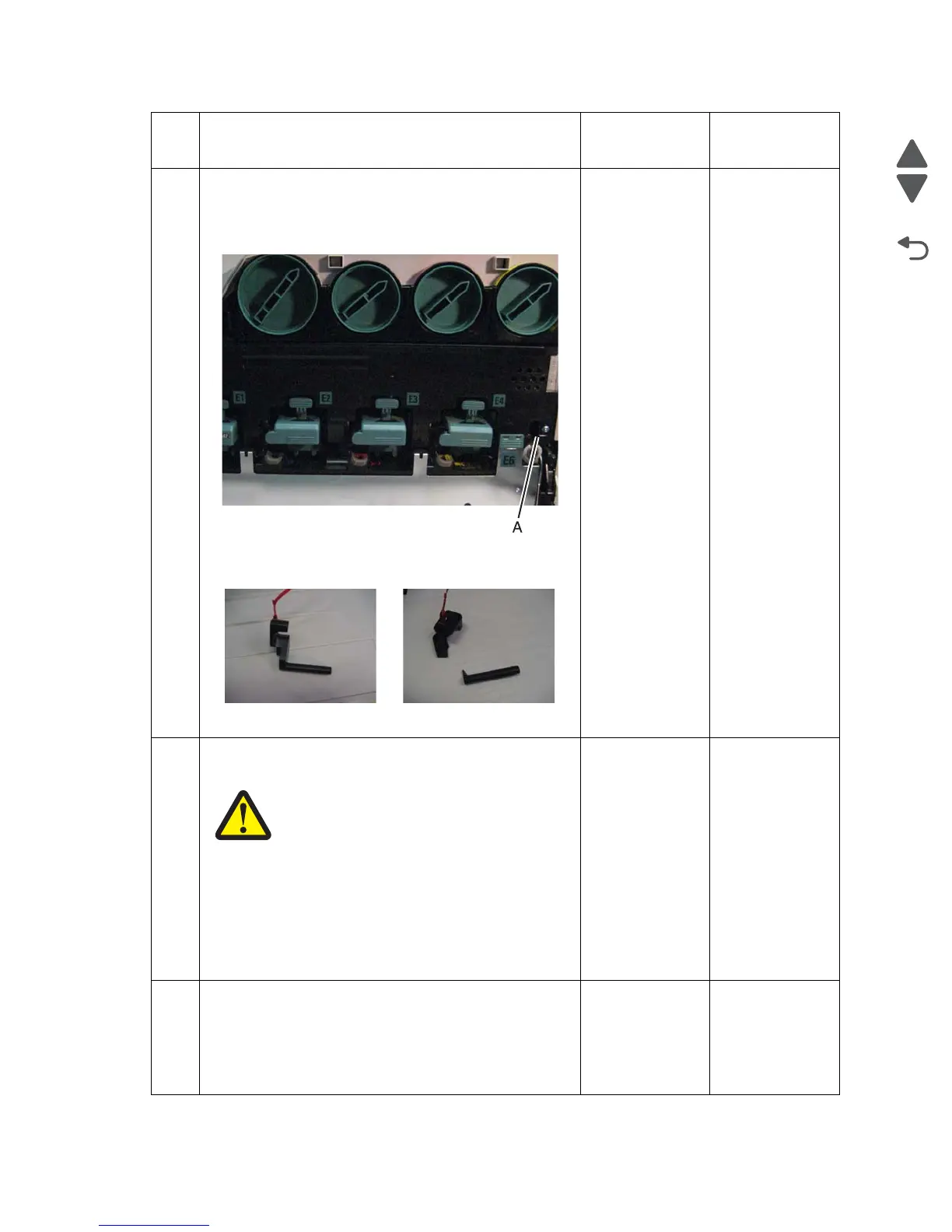

Check that the transfer belt steering mechanism lock
packaging was fully removed. If not removed before the
transfer belt lever is lowered, the transfer belt steering
mechanism lock might break and remain inside the machine
in the area, as showing in the following image (A).
The following images show the transfer belt steering
mechanism lock.
Are there any remnants from the packaging?
Remove any
packaging
remnants.
Go to the next
step.
6
Check the transfer belt steering motor assembly for proper
operation.
Caution: When performing motor tests,
ensure that all cover and door interlock
switches are overridden.
1. Enter the Diagnostics Menu.
2. Touch MOTOR TESTS.
3. Touch Printer Motor tests
4. Touch Transfer belt steering motor.
Does the above component operate properly?
Go to step 5. Go to step 4.
7
Check the transfer belt steering motor for proper
connection.
Is the above component properly connected.
Replace the
transfer belt
steering motor.
Go to “Transfer
belt steering
motor removal”
on page 4-75.
Replace the
connection.
If the problem
persists, contact
the next level of
support.
Step Check Yes No
