Diagnostic information 2-165
7510
Go Back
Previous
Next
5
Are the PC cartridge units correctly installed?

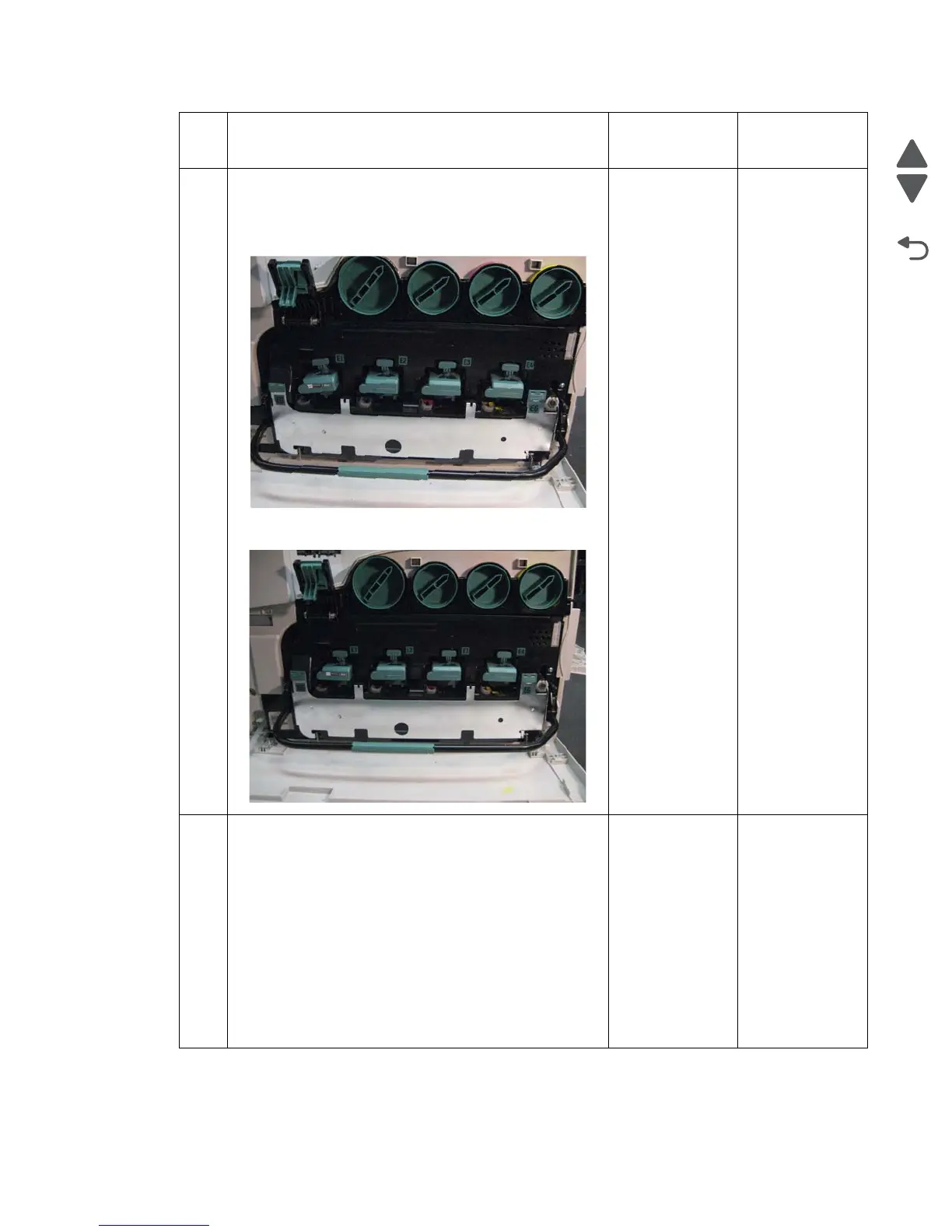

Refer to the following images. Note that the far left PC
cartridge unit is tilted in the first image.
Incorrect:
Correct:
Go to the next
step.
Remove and
reinstall the PC
cartridge units
correctly. See “PC
cartridge unit
removal” on
page 4-54.
6
Do the PC units easily slide in and out of the machine? Go to the next
step.
Replace any
damaged PC units
or any damaged
erase lamp
assembly. See
“PC cartridge
unit removal” on
page 4-54, “K
erase lamp
assembly
removal” on
page 4-76, or
“CMY erase lamp
assembly
removal” on
page 4-75 .
Step Check Yes No
