Repair information 4-19
7510
Go Back
Previous
Next

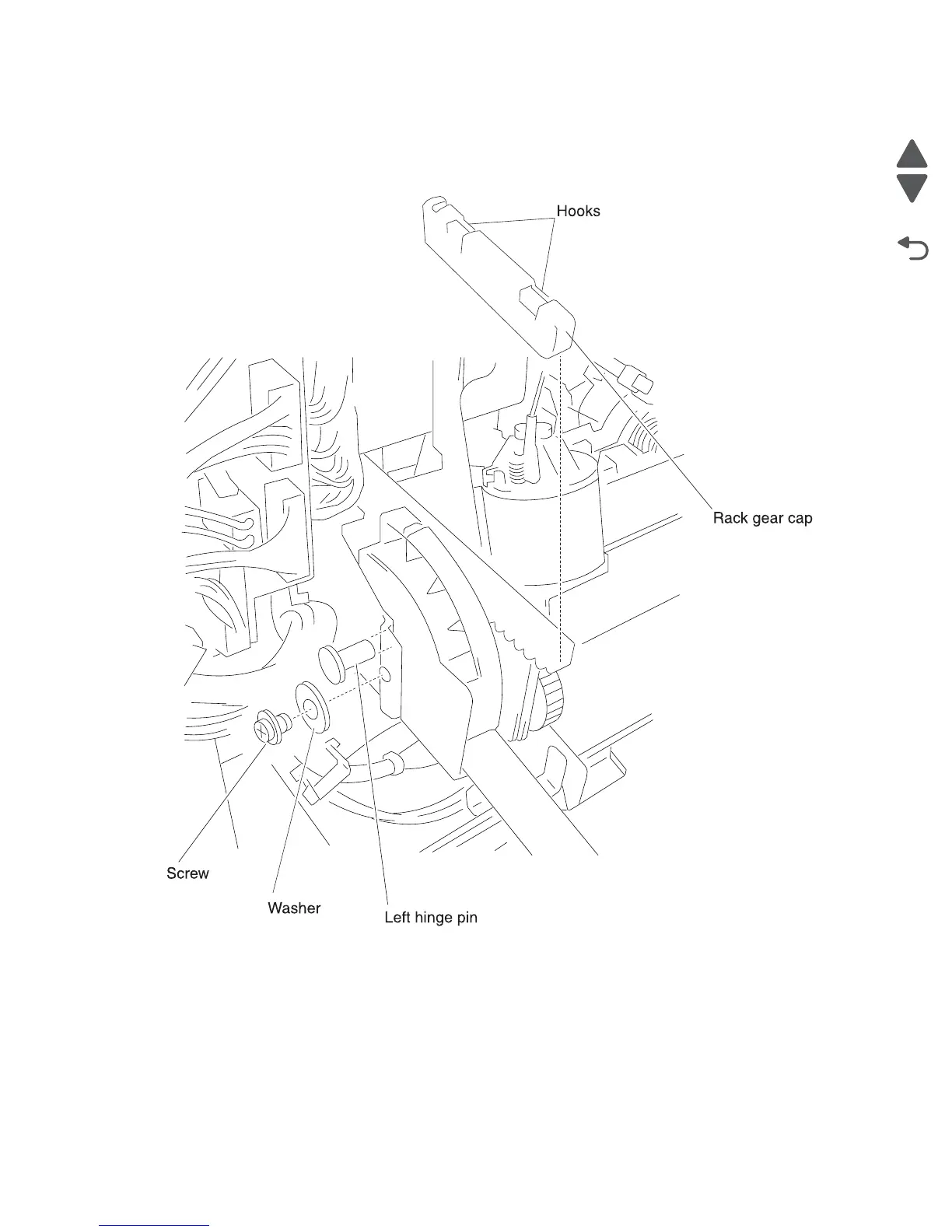

8. Gently release the hooks on the two plastic rack gear caps with a small flat-tip screwdriver.
9. Remove the two plastic rack gear caps.
10. Remove the screw and washer securing the left hinge pin.
11. Remove the left hinge pin.
