Lexmark X945e MFP 7510 series - Page 469

Repair information 4-37
7510
Go Back
Previous
Next

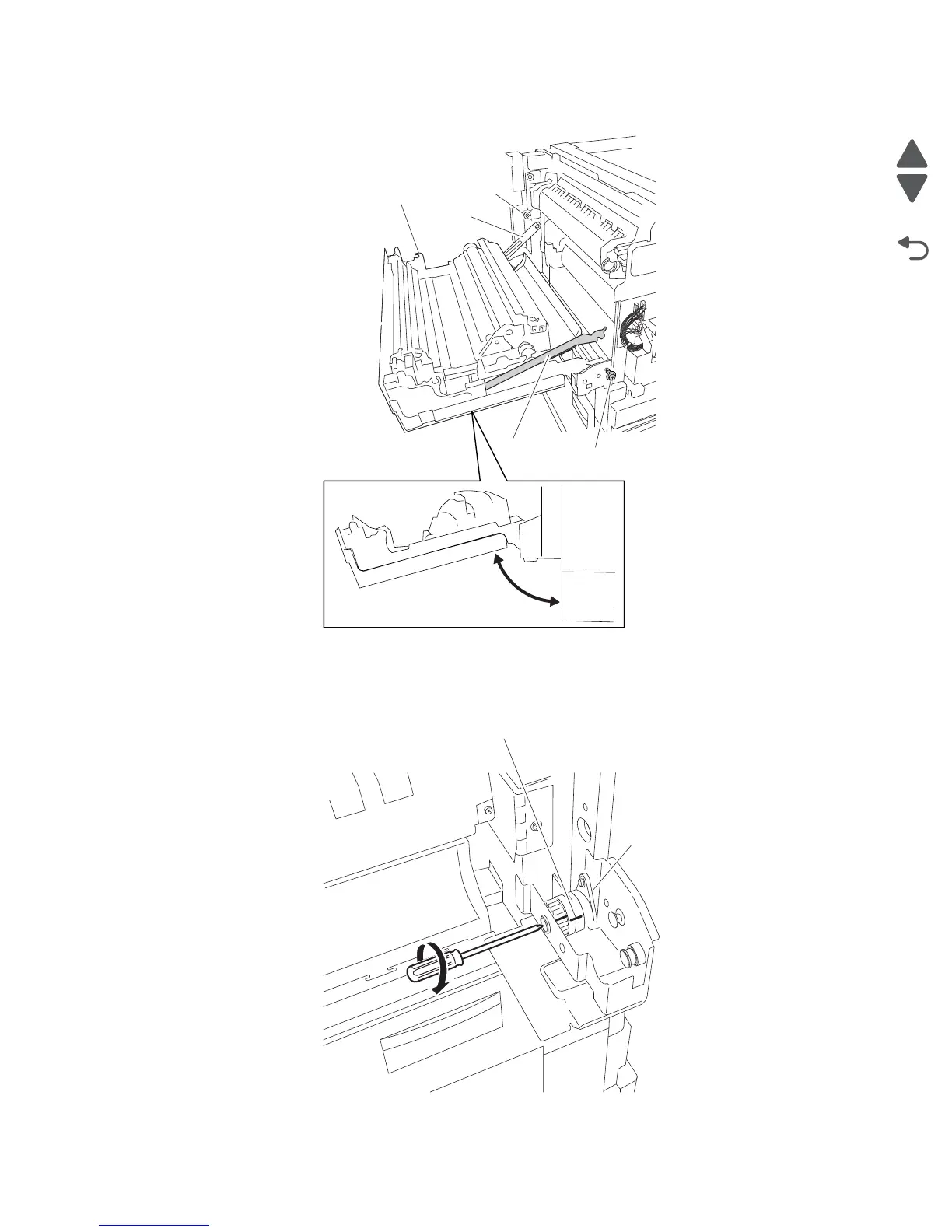

Replacement warning: When replacing the printer left door assembly (B), ensure that the black lines are
aligned on the damper assembly (E), or the door will not properly operate.
.
B
C-clip
D
C
Safety screw
Approximately 75°
E
Black line
