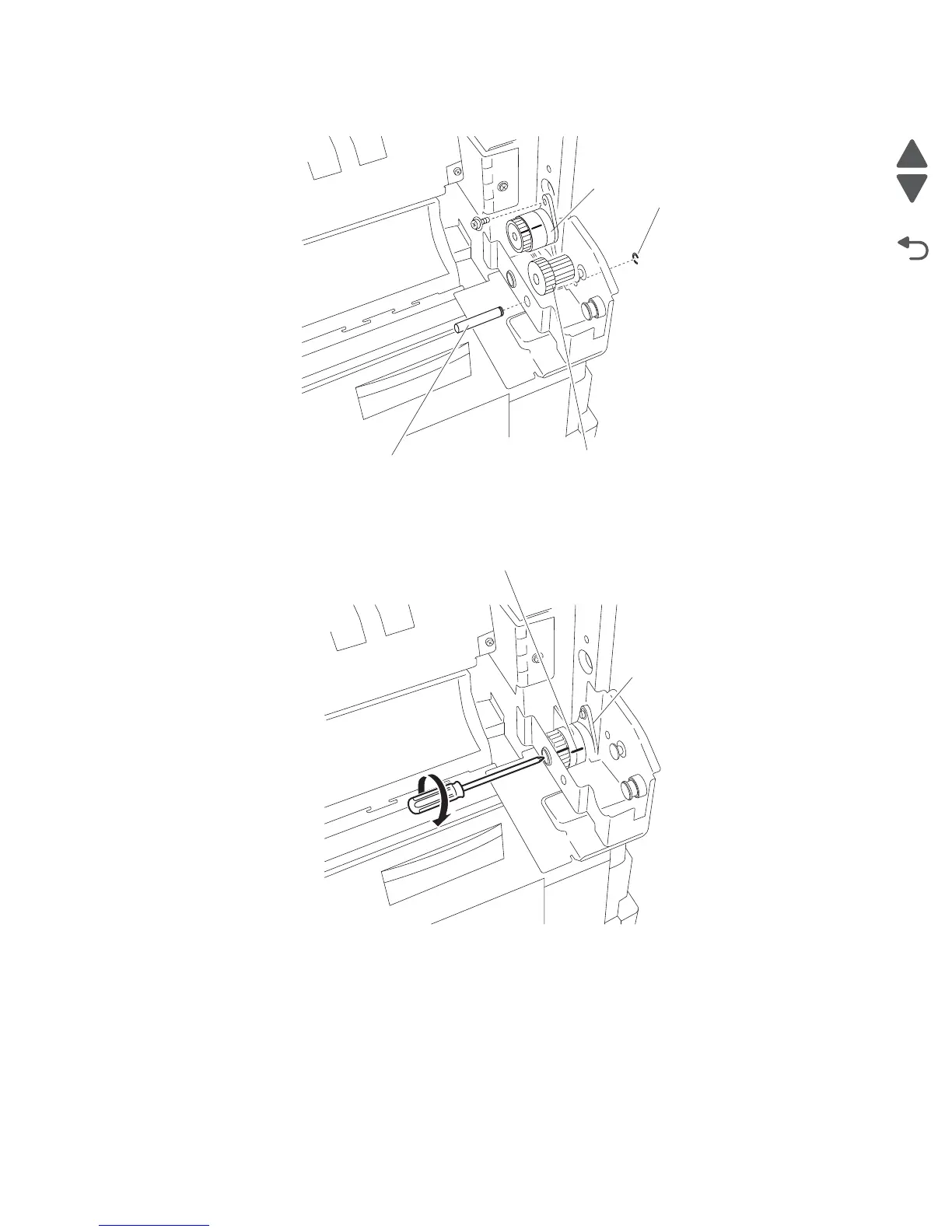

9. Remove the printer left door damper (C).
Replacement warning: When replacing the printer left door assembly (D), ensure that the black lines are
aligned on the damper assembly (C), or the door will not properly operate.
Replacement warning: When replacing the printer left door assembly (D), ensure that the duplex media
exit turn guide (E) is held in its upper-most position, or the printer left door assembly (D) will not close
properly.
A
B
C
E-clip
C
Black line
